Toyota Tacoma | Catalytic Converter Shield | 3rd Gen | 2016-2023 | 4x4
Toyota Tacoma | Catalytic Converter Shield | 3rd Gen | 2016-2023 | 4x4
Regular price
$249.99 USD
Regular price
$299.99 USD
Sale price
$249.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Black Friday Savings!

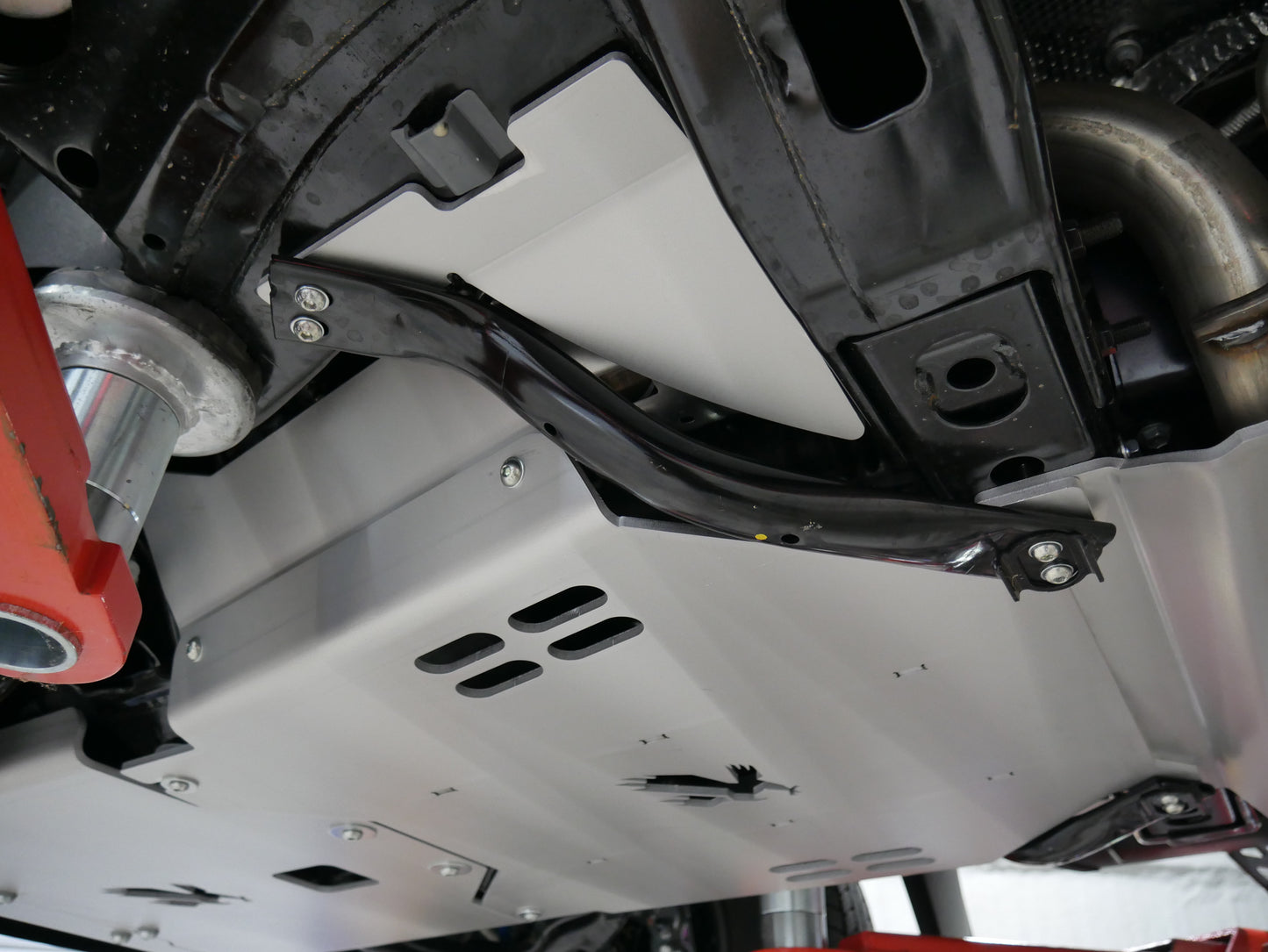

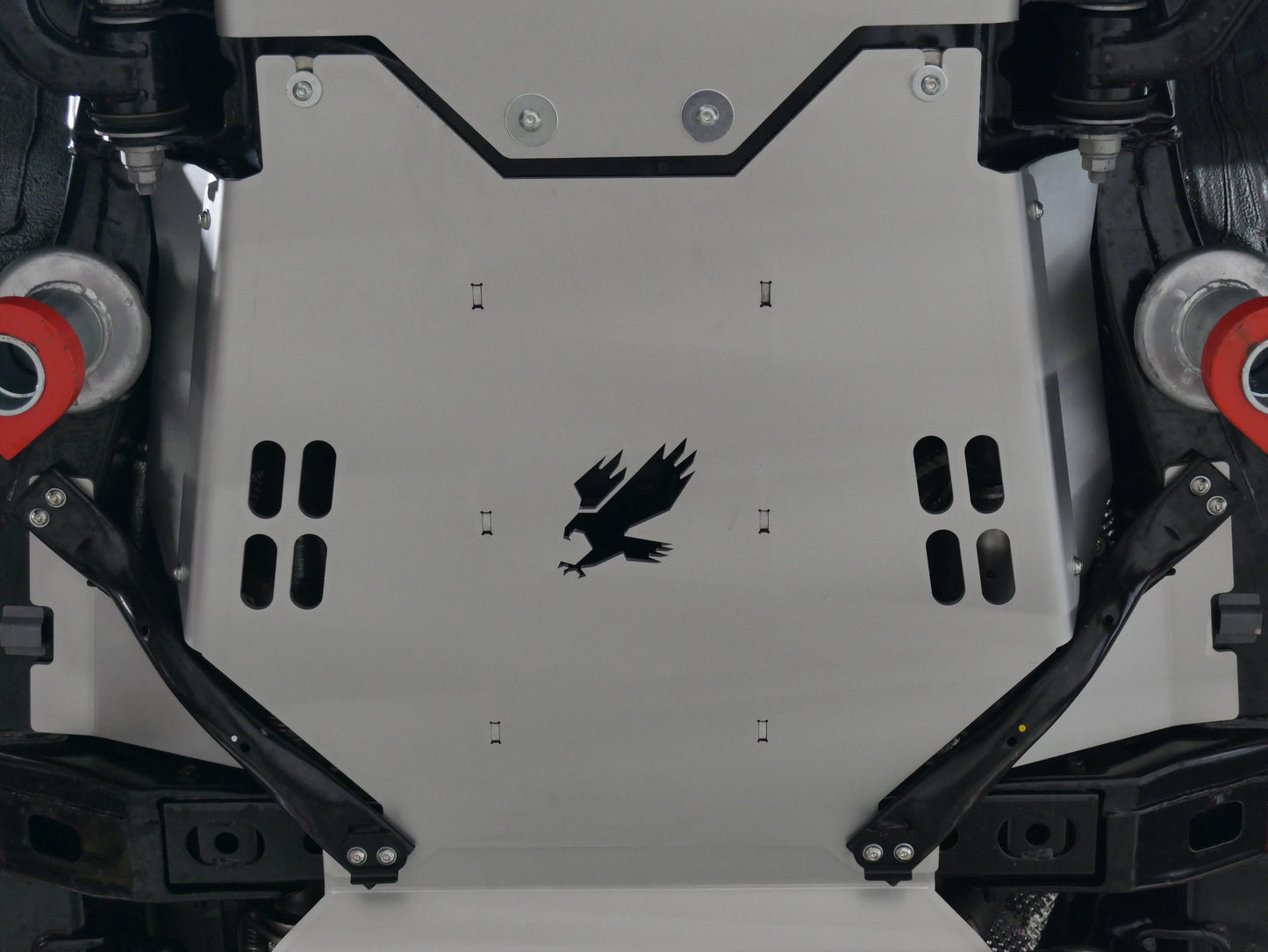

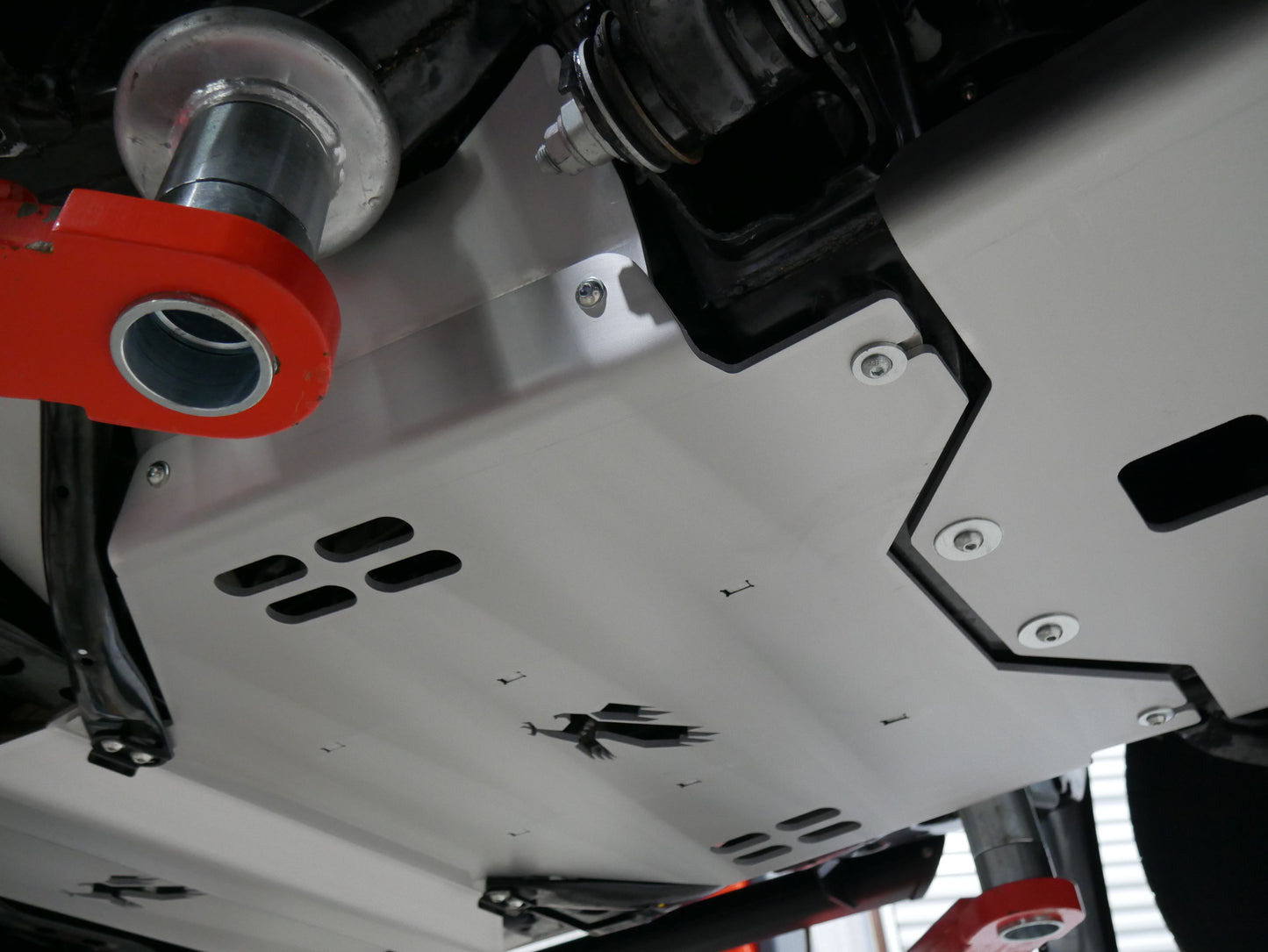

A catalytic converter shield for your 2016-2023 Toyota Tacoma. Crafted out of 1/4" 5052 aluminum or 3/16" steel, making it an ideal cat theft deterrent and an off-road skid plate. It's an all-in-one design concept! This design boasts a heavy duty shield that runs from crossmember to crossmember with added attachments for additional catalytic converter protection.
Fitment
- This shield is designed to fit Tacomas with a 4x4 drivetrain and V6 engine
- Here's the link to our 4x2 Tacoma cat shield
- Caution if you have a 4-cylinder Tacoma: Fitment has NOT been confirmed on 4-cylinder Tacomas with a 4x4 drivetrain.
- Ventilation holes to keep temperatures down around the transmission
- Mounts into preexisting holes from the factory
- Not compatible with lift kits that require subframe modifications (usually lifts greater than 3 inches)
- Compatible with a manual transmission
- In some instances, there may be a tab on a preexisting OEM/TRD skid plate that will need to be bent slightly to allow the transmission shield to slide into place. This does not impact the integrity of either shield
Included with purchase
- Transmission skid/catalytic converter shield
- Zinc-coated button head Allen head hardware
- Optional Add-on Purchase: Security bolts offered as an add-on purchase. Link to product page here.
- Optional add-on Purchase: Welded reinforcing ribs around transmission to add additional strength for off-road applications
Material
- Aluminum: CNC Laser Cut out of 1/4" 5052 Aluminum - Will not rust!
- All plates ship uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished
- Steel: CNC Laser Cut out of 3/16" steel. Powder coated in a black wrinkle finish
Installation
- Mounts into preexisting holes from factory
- Bolt in installation, no drilling required, can be performed by anyone with basic hand tools
- Click here for installation instructions
Dimensions
- Aluminum 29x4x32 and 23 lbs (24 lbs with reinforcing ribs)
- Steel 43 lbs 29x4x32 and (45 lbs with reinforcing ribs)
Shipping, returns, warranty
- Click here for our policies page
- Powder coated products are not returnable
- Steel and bare aluminum shipping in 1-2 business days
- Powder coated aluminum shipping in 1-2 weeks
- If you are interested in local pick up please select "Local Pick Up" as your shipping preference at check out. We are located in Northwest Houston (Willowbrook, zip code 77066).
