Talons Garage

Toyota Tacoma | Catalytic Converter Shield | 3rd Gen | 2016-2023 | 4x2

Toyota Tacoma | Catalytic Converter Shield | 3rd Gen | 2016-2023 | 4x2

Regular price $249.99 USD
Regular price $299.99 USD Sale price $249.99 USD
Sale Sold out
Shipping calculated at checkout.

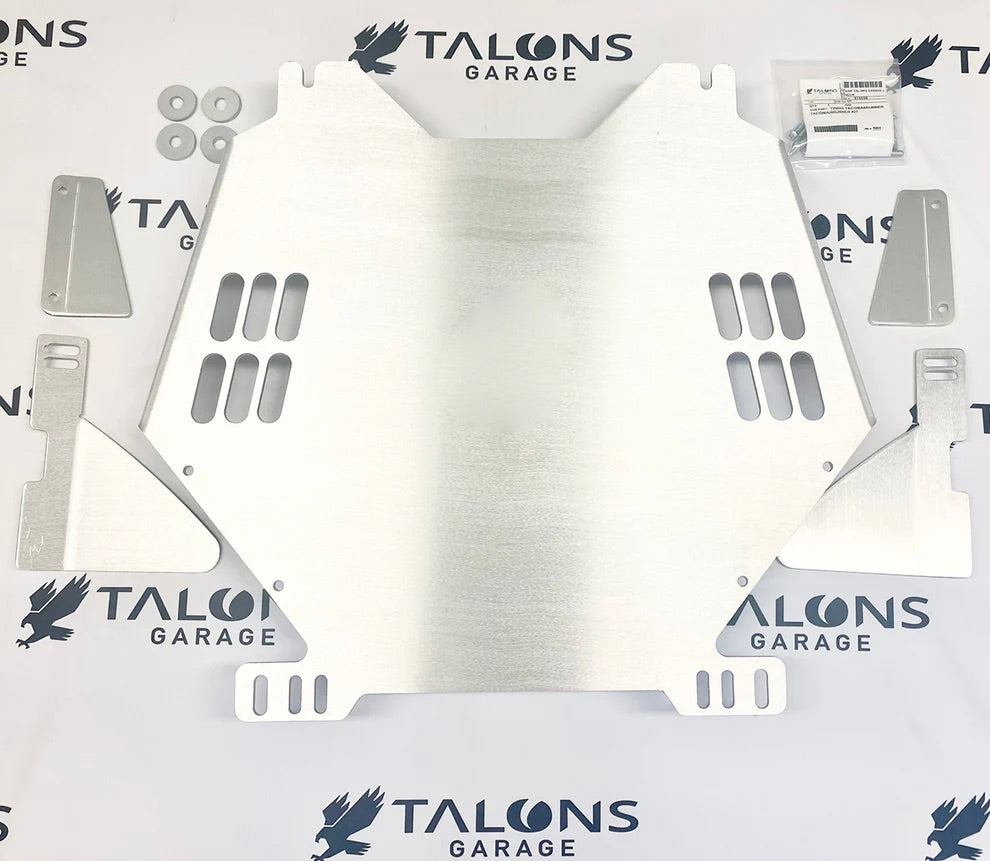

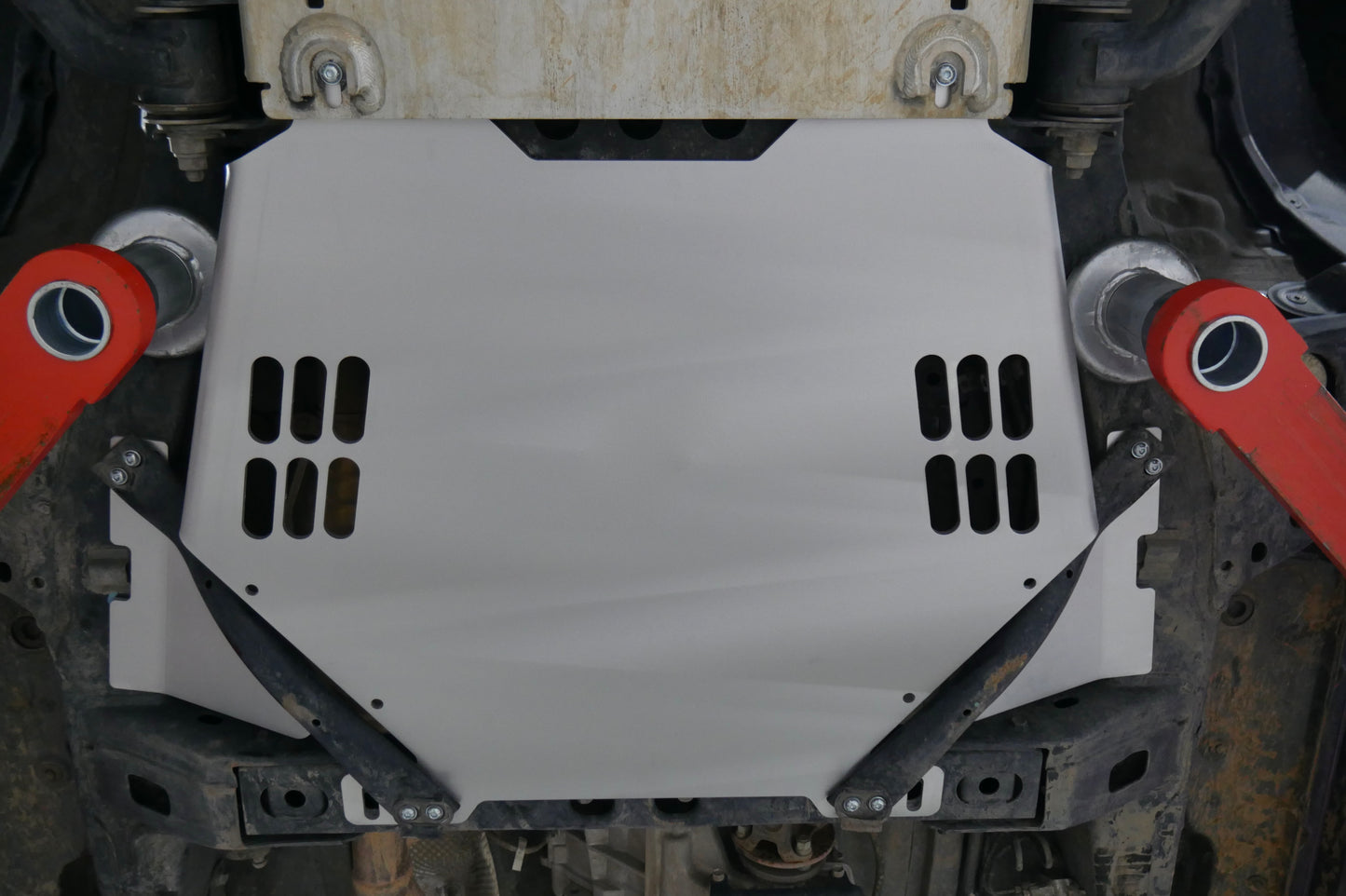

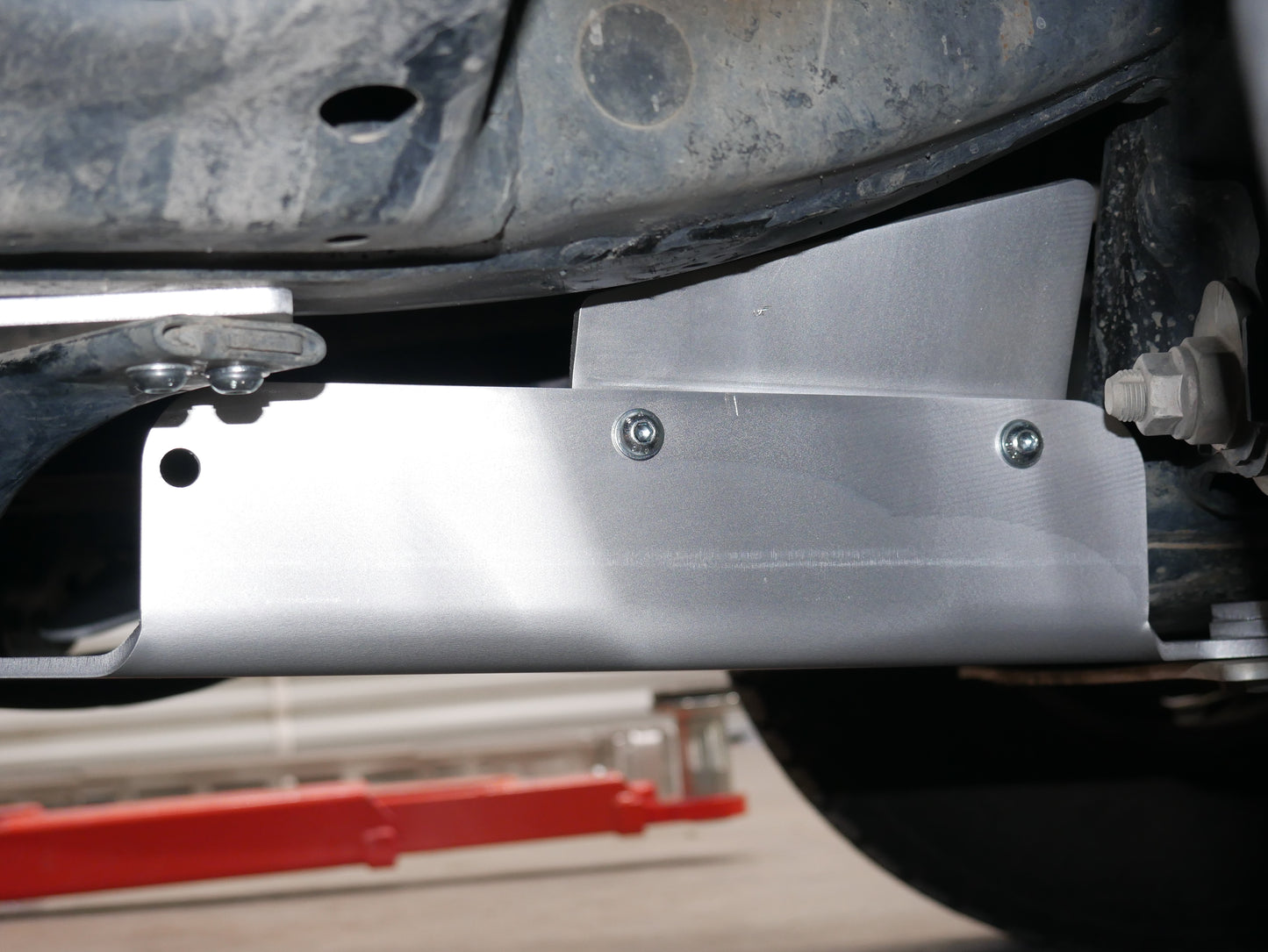

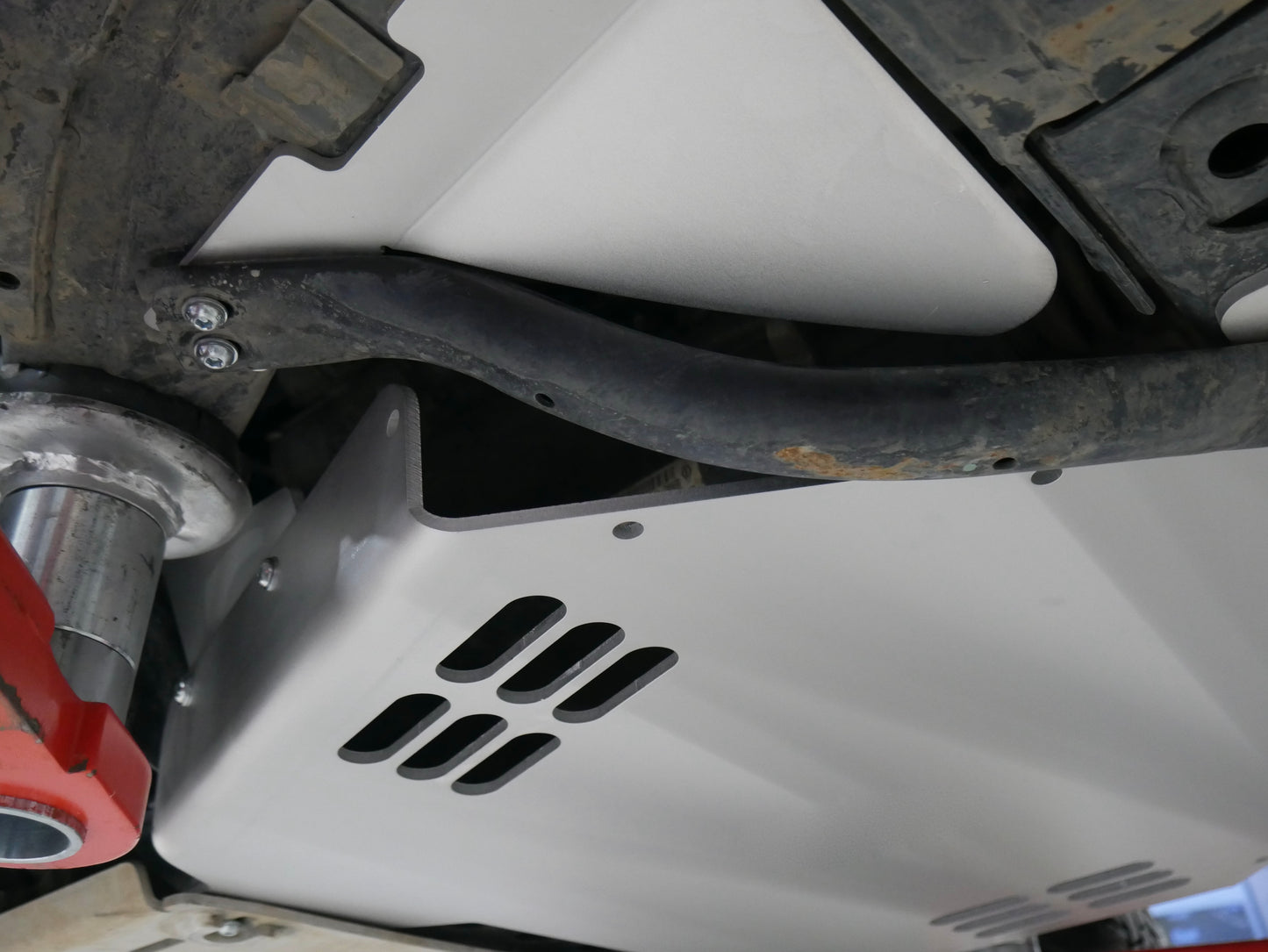

A catalytic converter shield for your 2016-2023 Toyota Tacoma. Crafted out of 1/4" 5052 aluminum or 3/16" steel, making it an ideal cat theft deterrent and an off-road skid plate. It's an all-in-one design concept! This design boasts a heavy duty shield that runs from crossmember to crossmember with added attachments for additional catalytic converter protection.

Note: On 4-cylinder models, this plate will only cover the front catalytic converter. Click here to view our rear catalytic converter shield

Fitment

  • This shield is designed to fit Tacomas with a 4x2 drive train
  • Here's the link to our 4x4 Tacoma cat shield
  • Caution if you have a 4-cylinder Tacoma: On 4-cylinder models, this plate will only cover the front catalytic converter. Click here to view our rear catalytic converter shield.
  • Ventilation holes to keep temperatures down around the transmission
  • Mounts into preexisting holes from the factory
  • Not compatible with lift kits that require subframe modifications (usually lifts greater than 3 inches)
  • Compatible with a manual transmission
  • In some instances, there may be a tab on a preexisting OEM/TRD skid plate that will need to be bent slightly to allow the transmission shield to slide into place. This does not impact the integrity of either shield

Included with purchase

  • Transmission skid/catalytic converter shield
  • Zinc-coated button head Allen head hardware
  • Add-on Purchase: Security bolts offered as an add-on purchase. Link to product page here.

Material

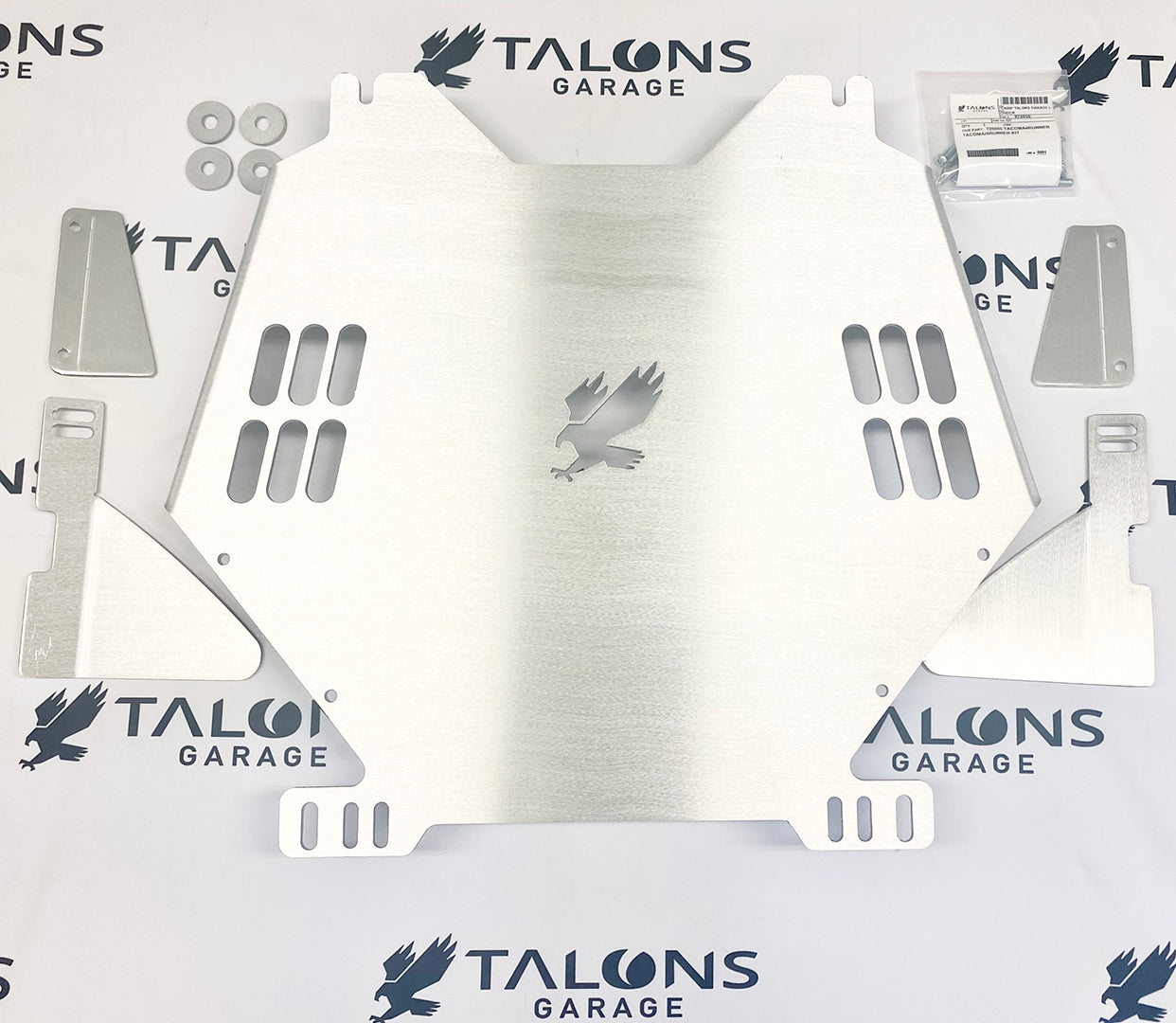

  • Aluminum: CNC Laser Cut out of 1/4" 5052 Aluminum - Will not rust!
  • All plates ship uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished

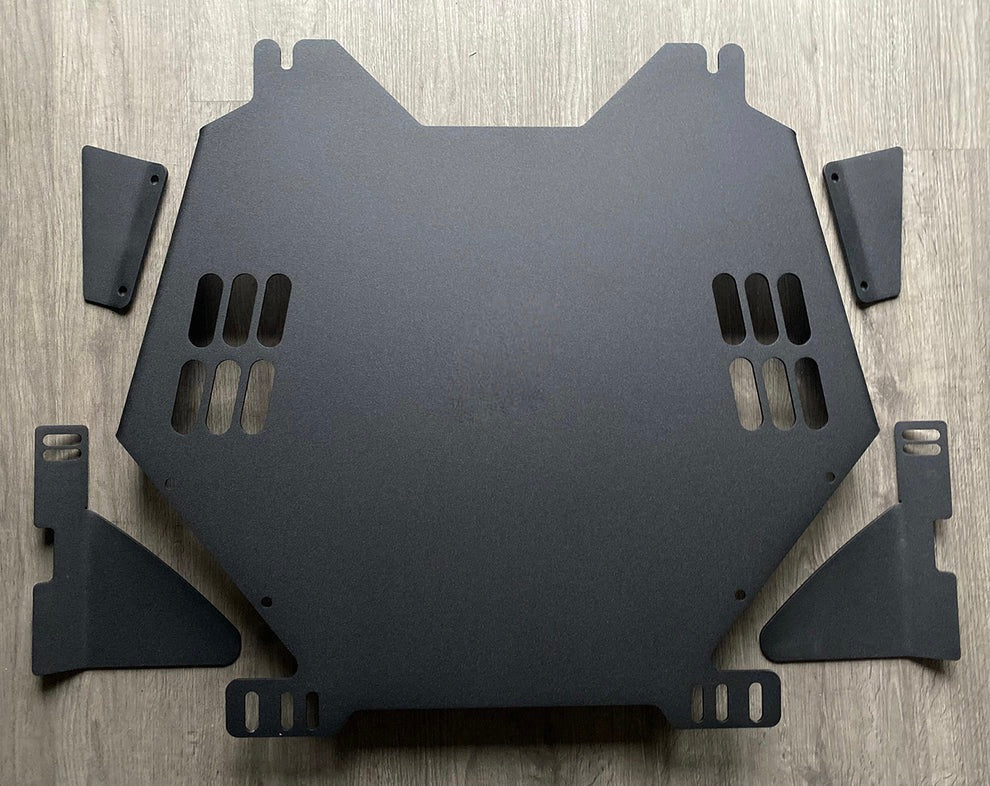

  • Steel: C NC Laser Cut out of 3/16" steel. Powder coated in a black wrinkle finish

Installation

  • Mounts into preexisting holes from factory
  • Bolt in installation, no drilling required, can be performed by anyone with basic hand tools
  • Click here for installation instructions

Dimensions

  • Approximate weight is 23 lbs in aluminum and 45 lbs in steel

Shipping, returns, warranty

  • Click here for our policies page
  • Powder coated products are not returnable
  • Bare aluminum ships in 1-2 days
  • Powder coated aluminum ships in 1-2 weeks
  • If you are interested in local pick up please select "Local Pick Up" as your shipping preference at check out. We are located in Northwest Houston (Willowbrook, zip code 77066).
