Toyota Tacoma | Full Skid Package | 3rd Gen | 2016-2023
Toyota Tacoma | Full Skid Package | 3rd Gen | 2016-2023
Regular price
$764.97 USD
Regular price
$914.97 USD
Sale price
$764.97 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

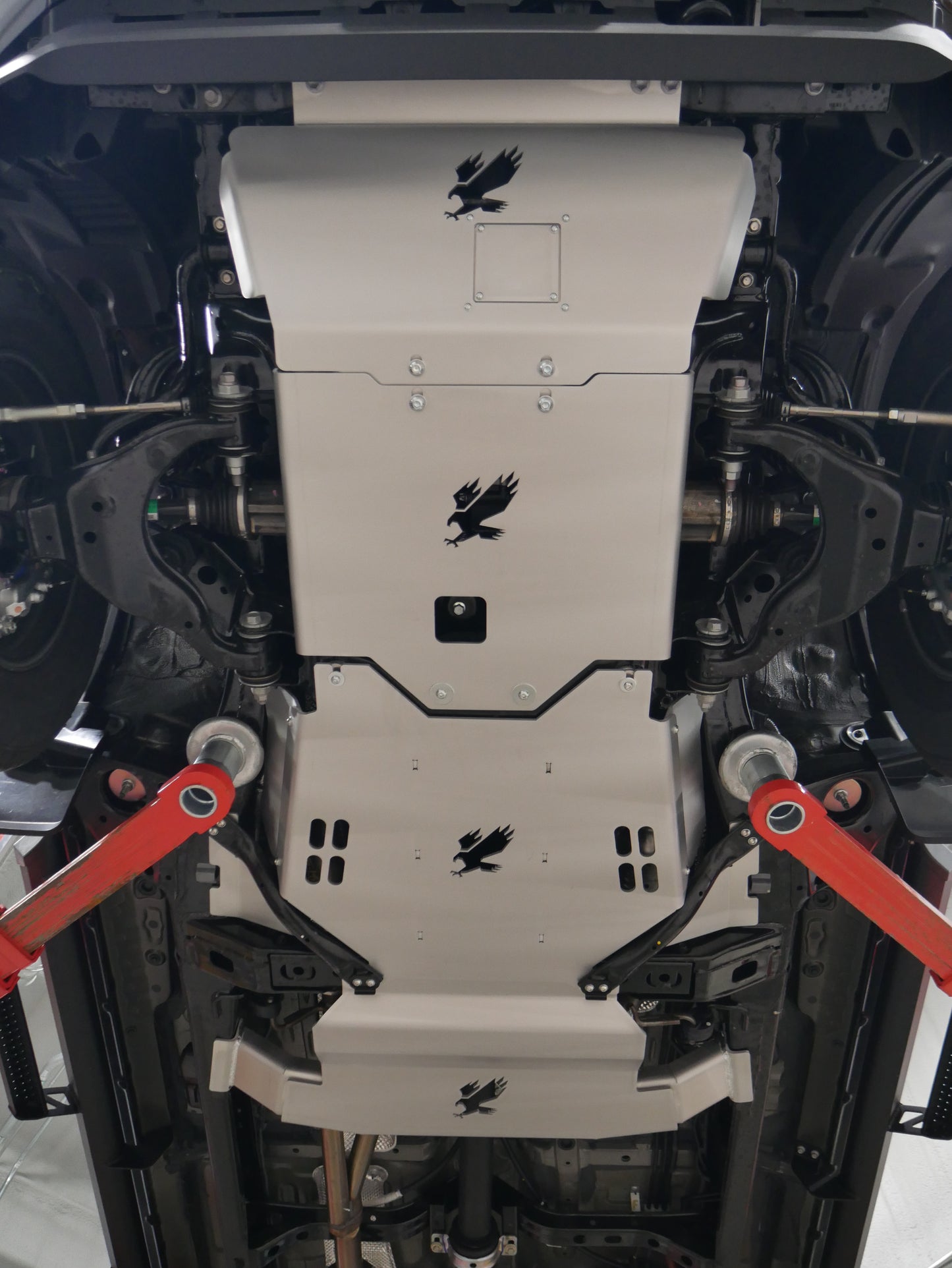

A full skid plate package for the 2016-2023 Toyota Tacoma. Crafted out of 1/4" 5052 aluminum or 3/16" steel.
Fitment
- Access to oil drain plug and oil filter without having to uninstall
- This shield is designed to fit Tacomas with a 4x4 drivetrain and V6 engine
- Ventilation holes to keep temperatures down around the transmission
- Mounts into preexisting holes from the factory
- Not compatible with lift kits that require subframe modifications (usually lifts greater than 3 inches)
- Compatible with a manual transmission
- In some instances, there may be a tab on a preexisting OEM/TRD skid plate that will need to be bent slightly to allow the transmission shield to slide into place. This does not impact the integrity of either shield
Included with purchase

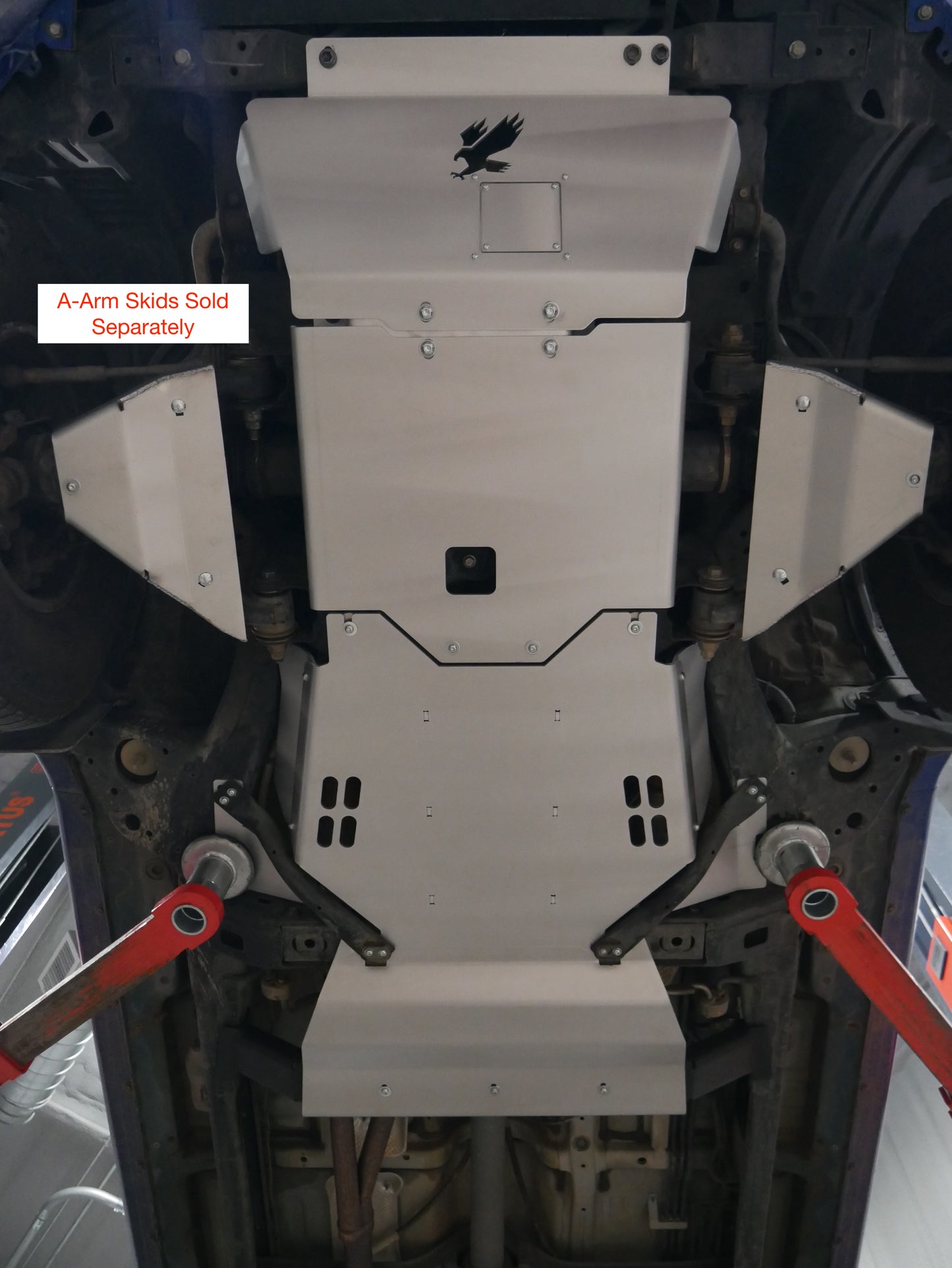

- Engine, transmission skid/catalytic converter shield, and transfer case skid
- Zinc-coated button head Allen head hardware

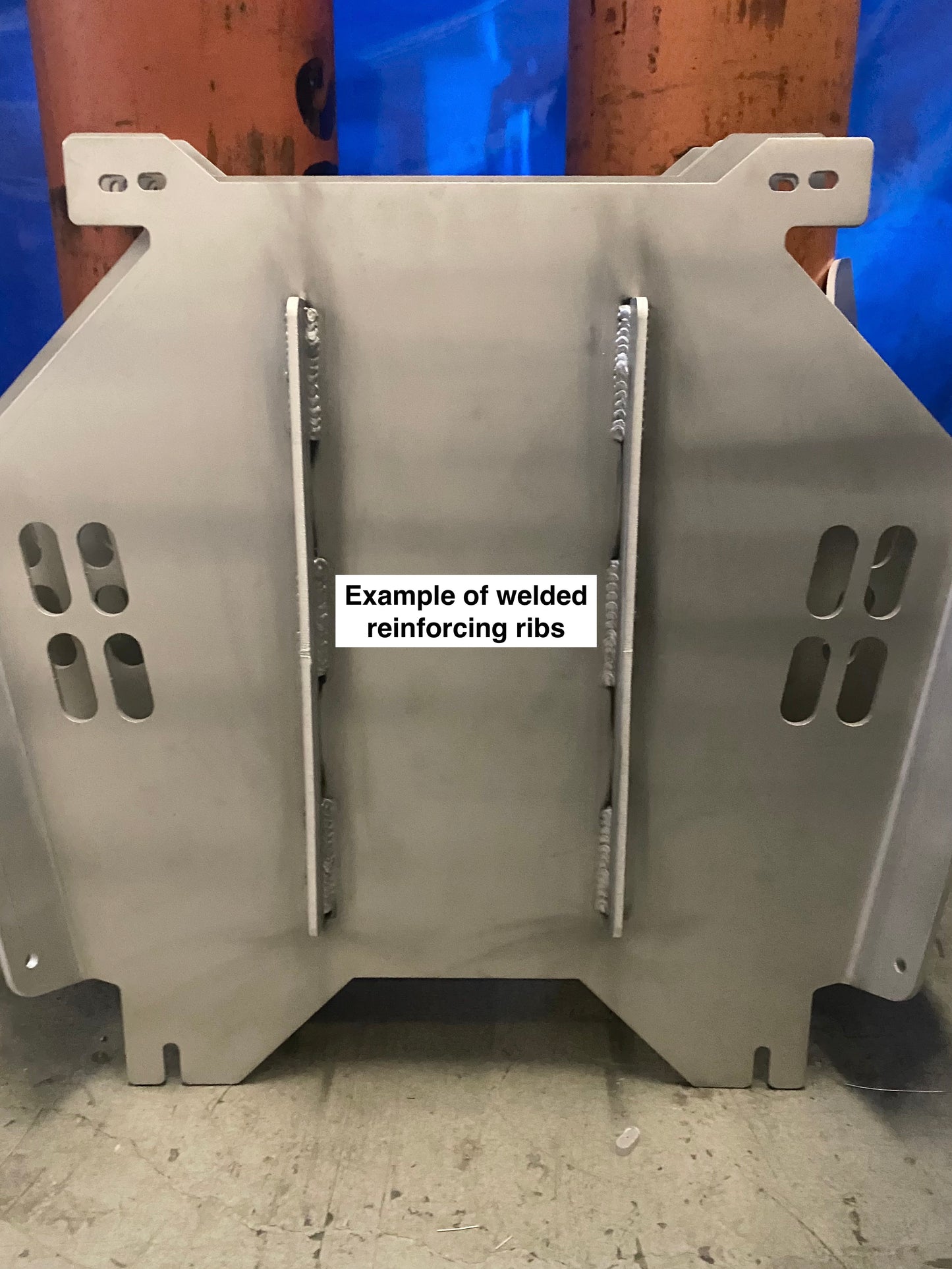

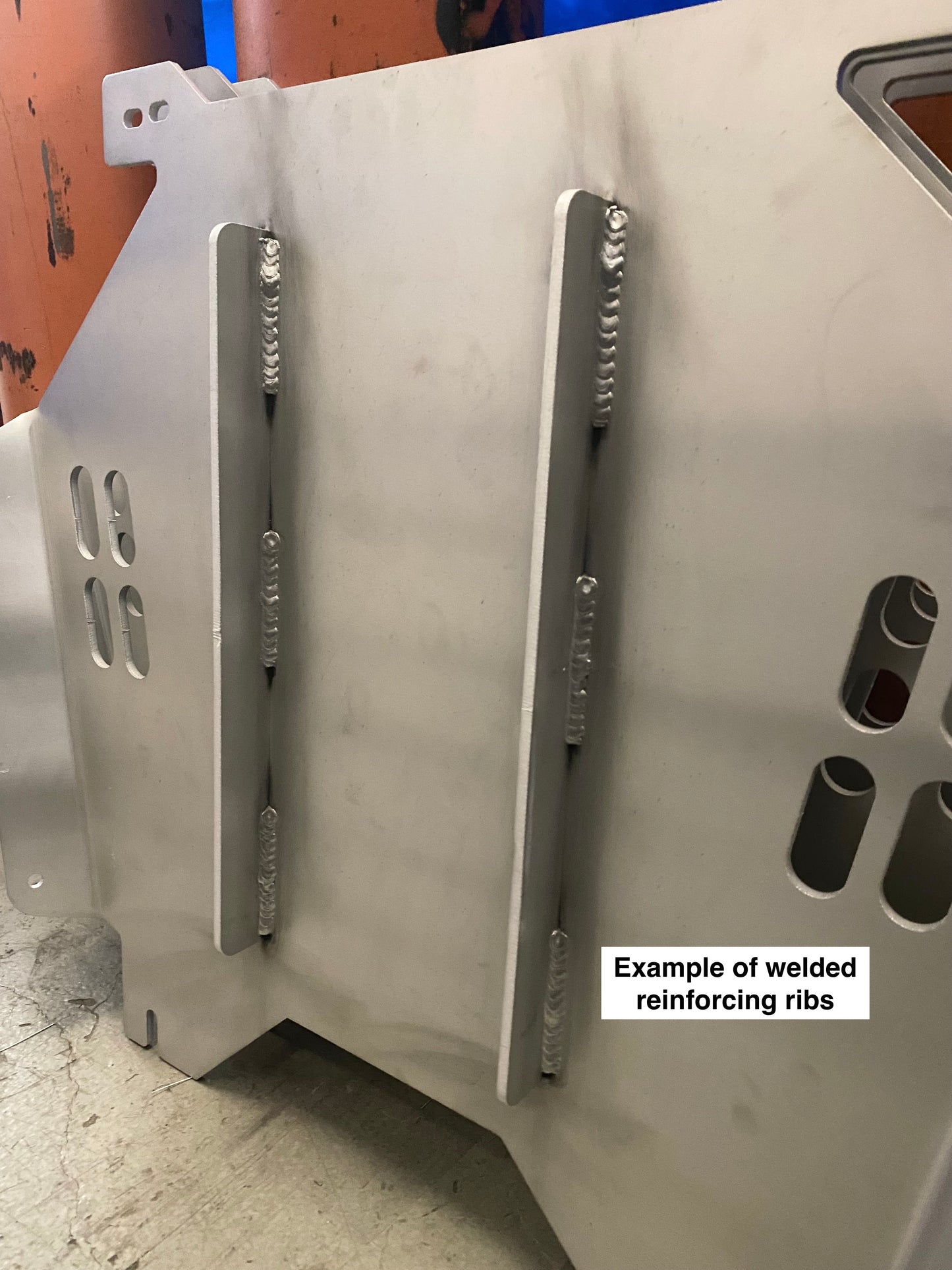

- Optional add-on Purchase: Welded reinforcing ribs around transmission to add additional strength for off-road applications
Material
- Aluminum: CNC Laser Cut out of 1/4" 5052 Aluminum - Will not rust! All aluminum plates ship uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished
- Steel: CNC Laser Cut out of 3/16" steel coated in a black wrinkle finish.
-
The transfer case braces that mount to the frame rail will be made out of 10-gauge steel and will be powder coated in black
Installation
- Mounts into preexisting holes from factory
- Bolt in installation, no drilling required, can be performed by anyone with basic hand tools
- Click here for installation instructions
Dimensions
- Engine: Aluminum weighs 29 lbs and steel weighs 53 lbs
- Transmission: Aluminum weighs 23 lbs (24 lbs with reinforcing ribs) and steel weighs 43 lbs (45 lbs with reinforcing ribs)
- Transfer Case: Aluminum weighs .. lbs and steel weighs 36 lbs
Shipping, returns, warranty
- Click here for our policies page
- Powder coated products are not returnable
- Bare aluminum and steel ship in 2-3 days
- Powder coated aluminum ships in 3-4 weeks
- If you are interested in local pick up please select "Local Pick Up" as your shipping preference at check out. We are located in Northwest Houston (Willowbrook, zip code 77066).
