Ford Bronco | Skid Plate Package | 2022-2024

Fitment

• Designs catered around bumper style and engine size
• Compatible with both 2-door and 4-door Broncos
• Featuring protected bolt heads
• Increased ribbing and reinforcements throughout

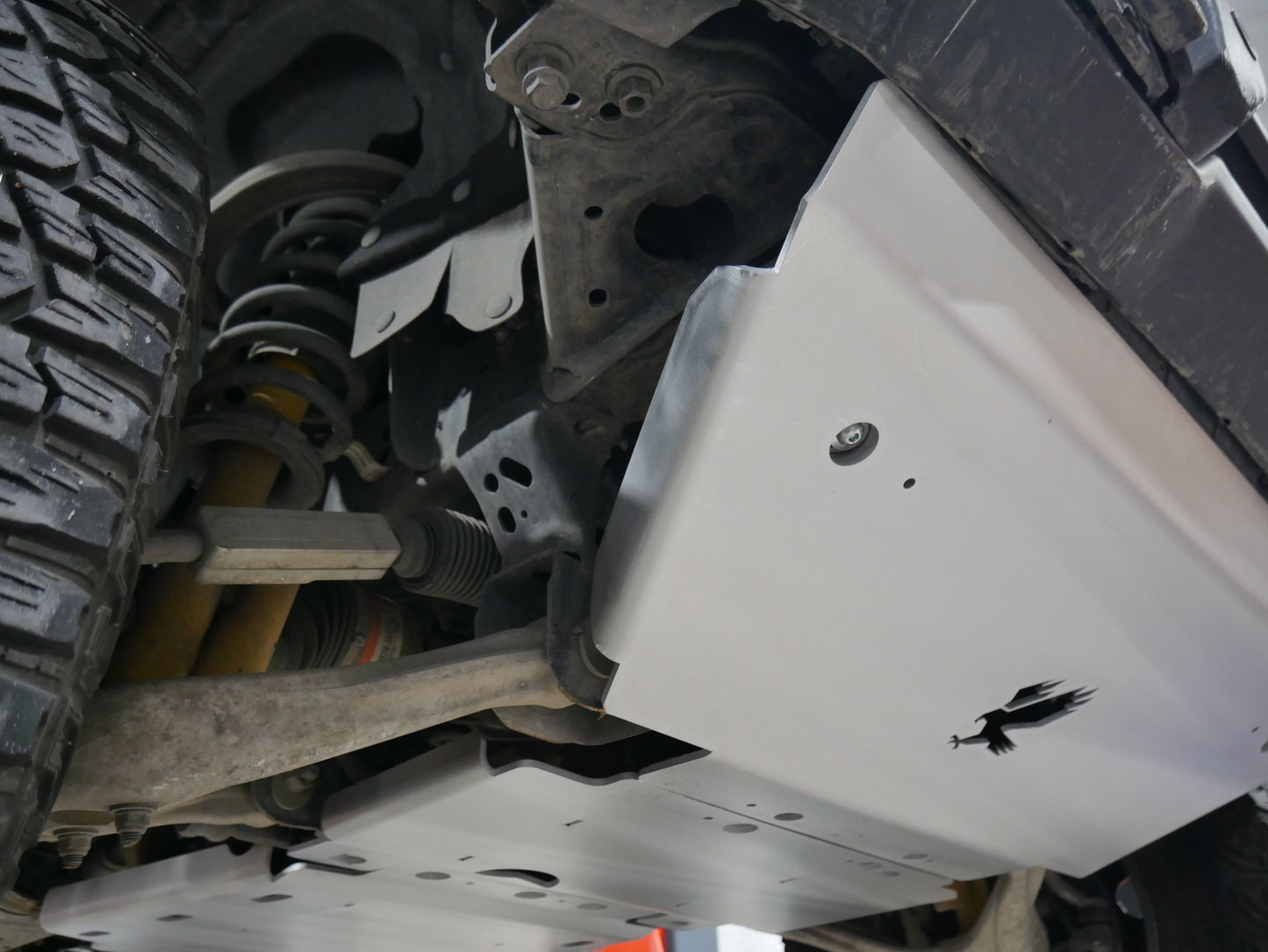

• Protection to A-arm mounts, front differential, oil pan, transmission pan

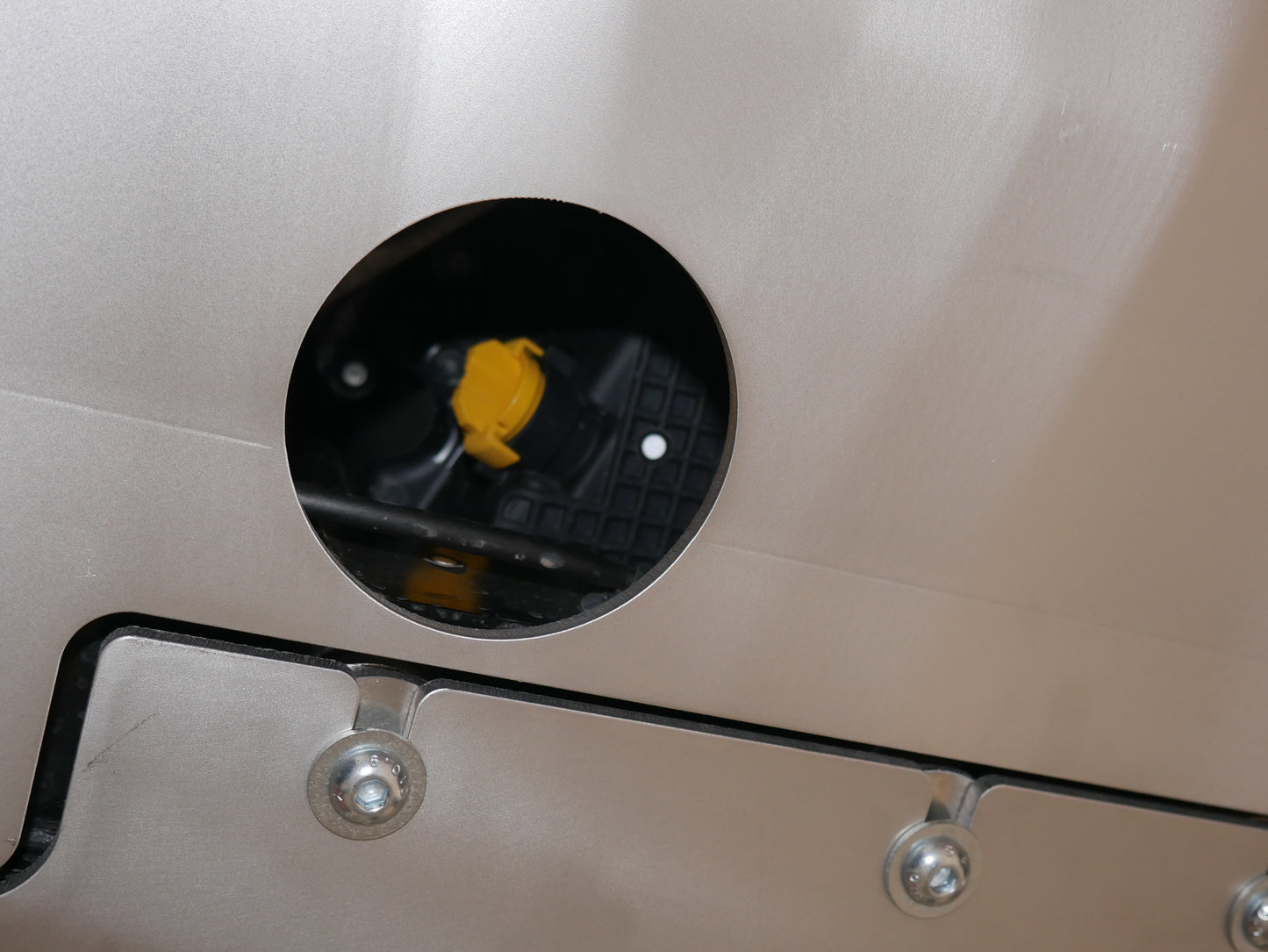

• Access to oil drain plug
• Mounts into preexisting holes from the factory
• Designed to fit a stock vehicle
• Compatible with the electronic disconnecting sway bar

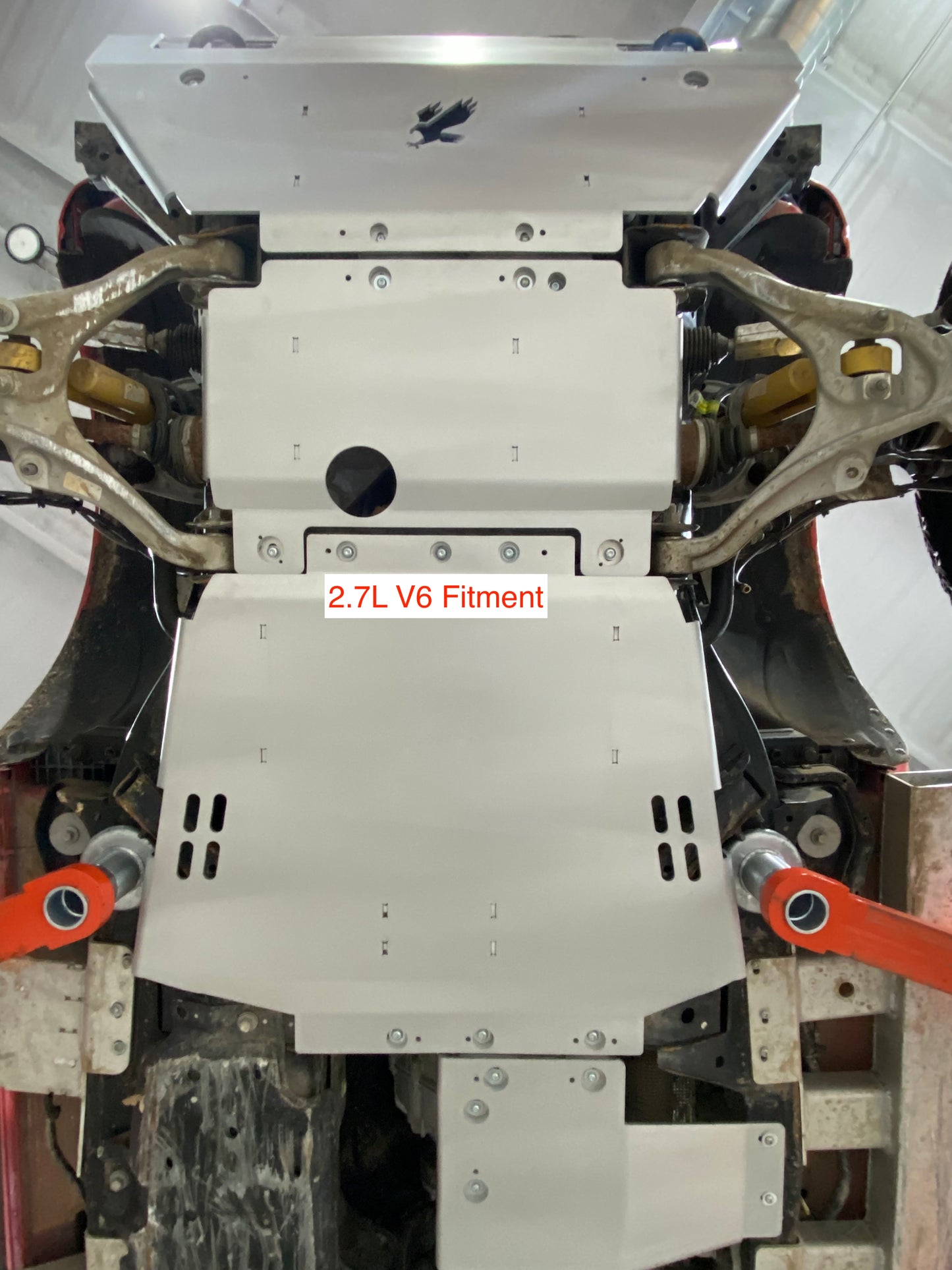

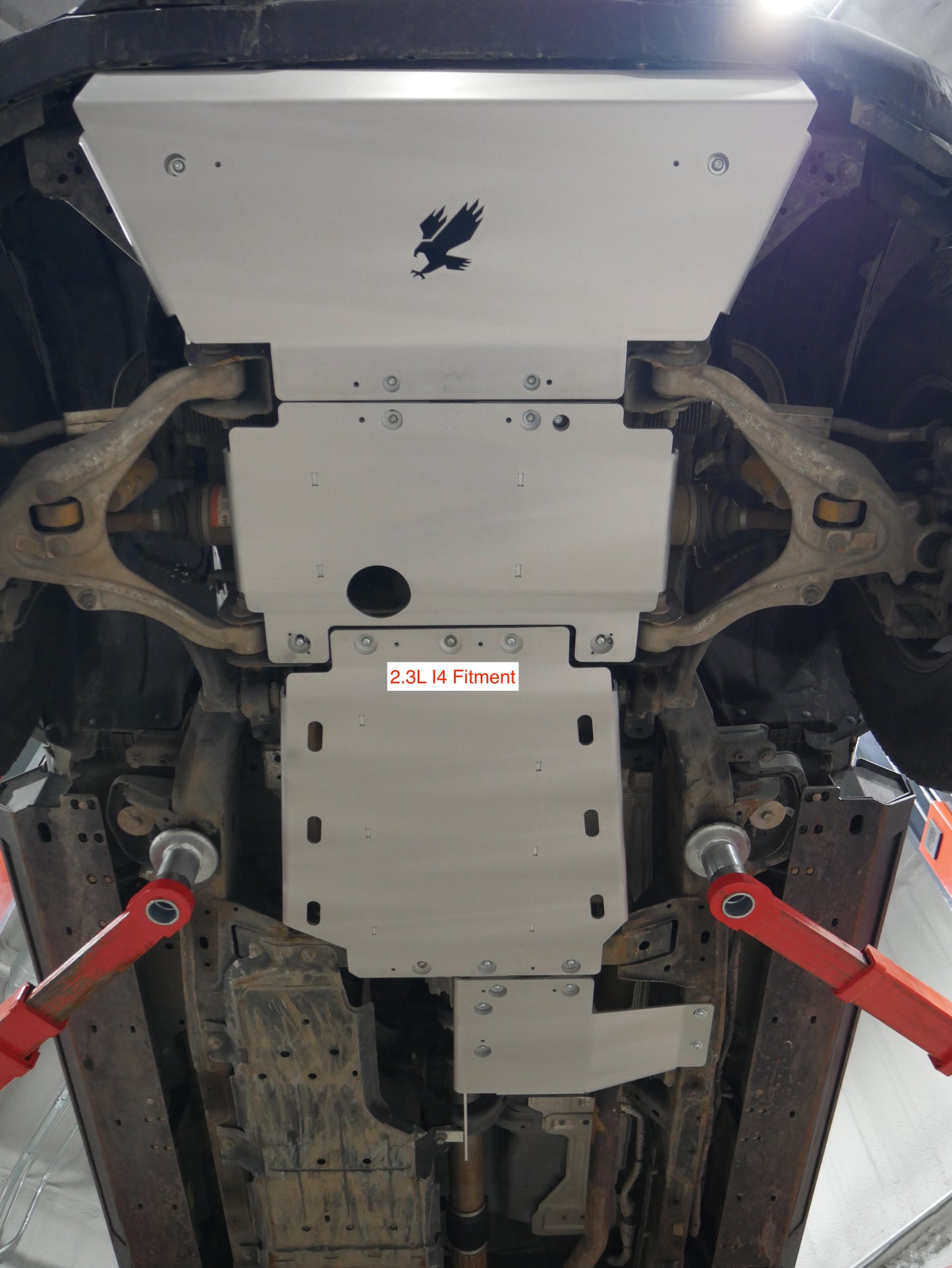

• Individual designs available for the 2.7L V6 and 2.3L I4. Get maximum coverage without sacrificing ground clearance.
• ***Contact us before purchasing if you have a 2021 Bronco

Included with purchase

• Front, Engine, transmission, and transfer case skid plates
• Zinc-coated button head Allen head hardware

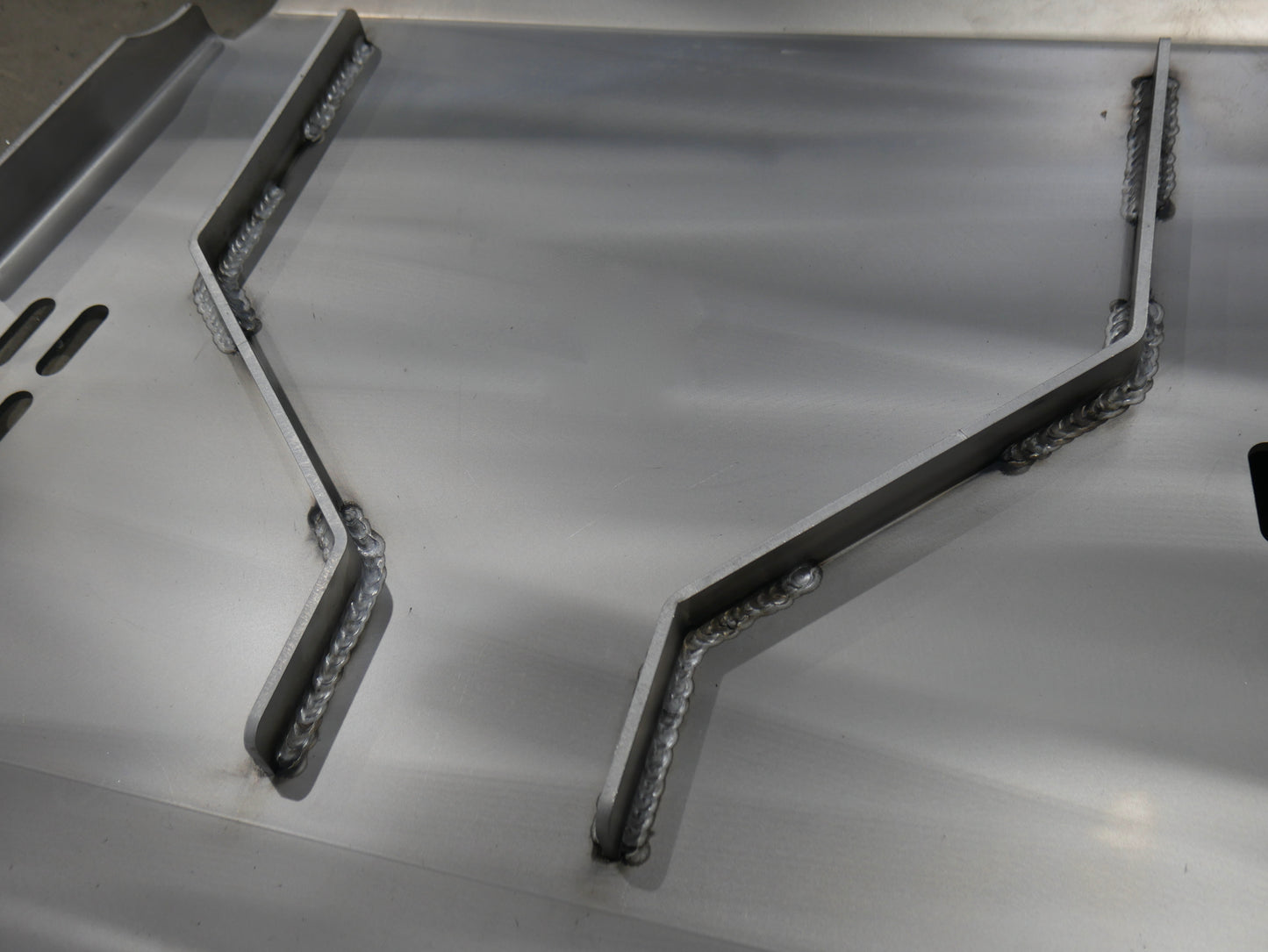

• **Add-on purchase available: Welded reinforcing ribs. Reinforcing ribs are rails that add increased rigidity around the transmission area for those who perform more moderate to intense off-road courses.

Material

• CNC Laser Cut

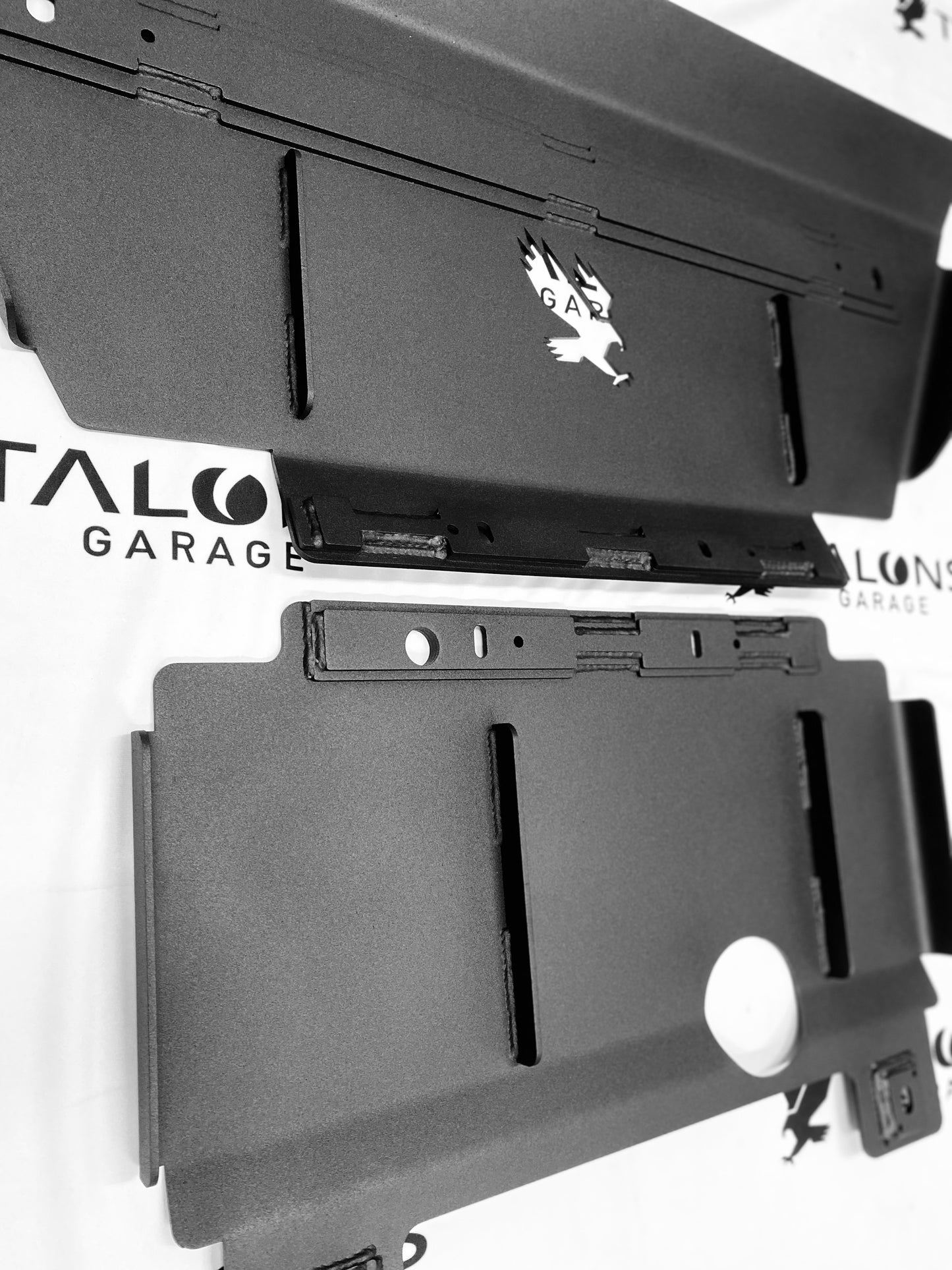

• Available in 1/4" bare aluminum or 3/16" powder coated steel
• Aluminum ships uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished

Installation

• Bolt in installation can be performed by anyone with basic hand tools
• Click here for installation instructions

Dimensions

Aluminum

• Engine skid for modular bumper weighs approximately 44 lbs
• Engine skid for plastic bumper weighs approximately xx lbs
• Transmission skid for 2.7L V6 weighs approximately 32 lbs
• Transmission skid for 2.3L I4 weighs approximately xx lbs
• Transfer case skid weighs approximately 15 lbs

Steel

• Engine skid for modular bumper weighs approximately 78 lbs
• Engine skid for plastic bumper weighs approximately xx lbs
• Transmission skid for 2.7L V6 weighs approximately 58 lbs
• Transmission skid for 2.3L I4 weighs approximately xx lbs
• Transfer case skid weighs approximately 25 lbs

Shipping, returns, warranty

• Link to Policies Page

• Powder coated products are not returnable
• Shipping in 2-3 weeks
