Talons Garage

Ford Bronco | Skid Plate Package | 2021-2023

Ford Bronco | Skid Plate Package | 2021-2023

Regular price $994.00 USD
Regular price Sale price $994.00 USD
Sale Sold out
Shipping calculated at checkout.

These are currently made to order. Please allow 1-2 weeks for order processing.

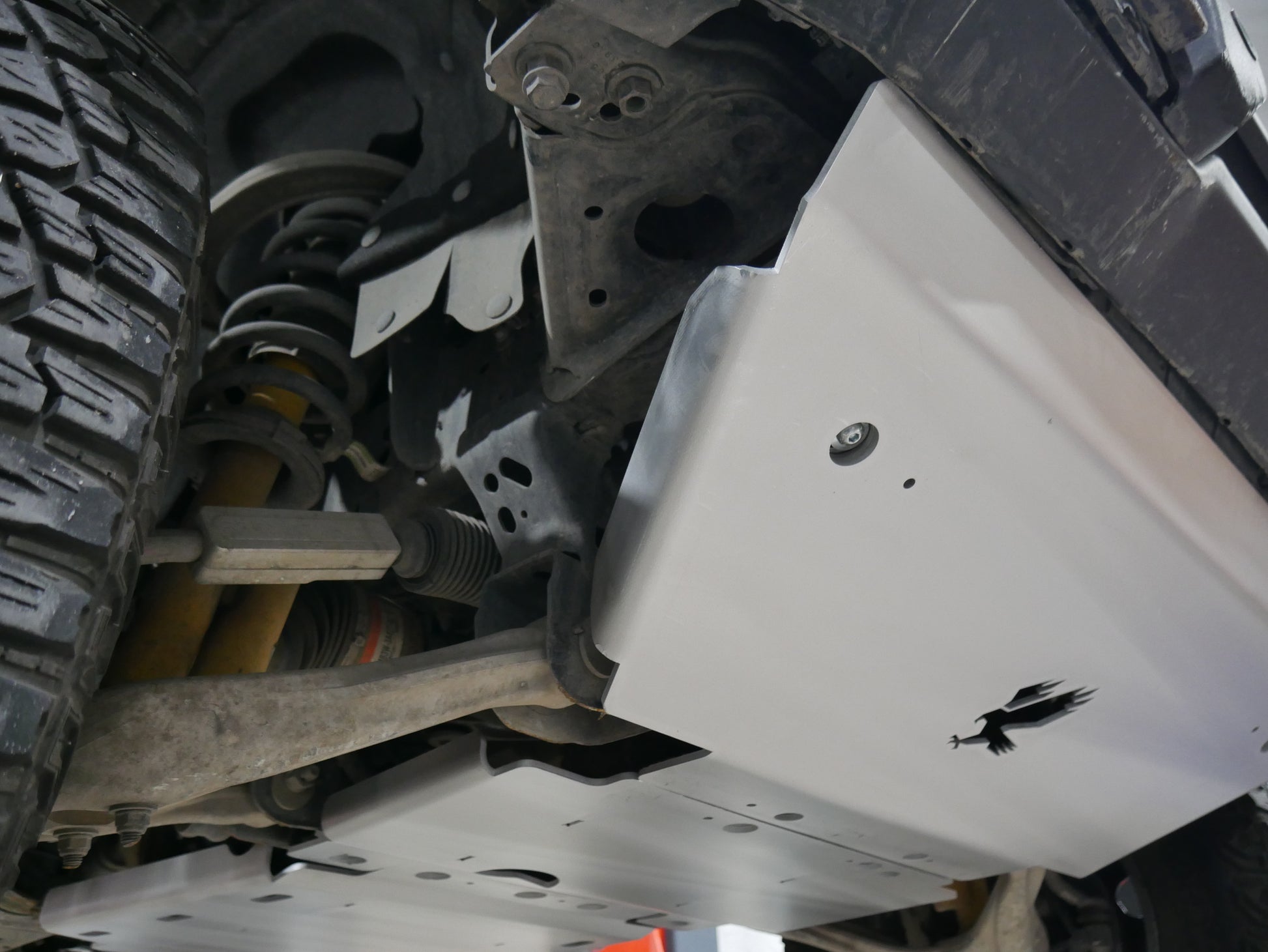

Get full undercarriage protection for your 2021-2023 Ford Bronco

Fitment

  • Designs catered around bumper style and engine size
  • Compatible with both 2-door and 4-door Broncos
  • Featuring protected bolt heads
  • Increased ribbing and reinforcements throughout
  • Protection to  A-arm mounts

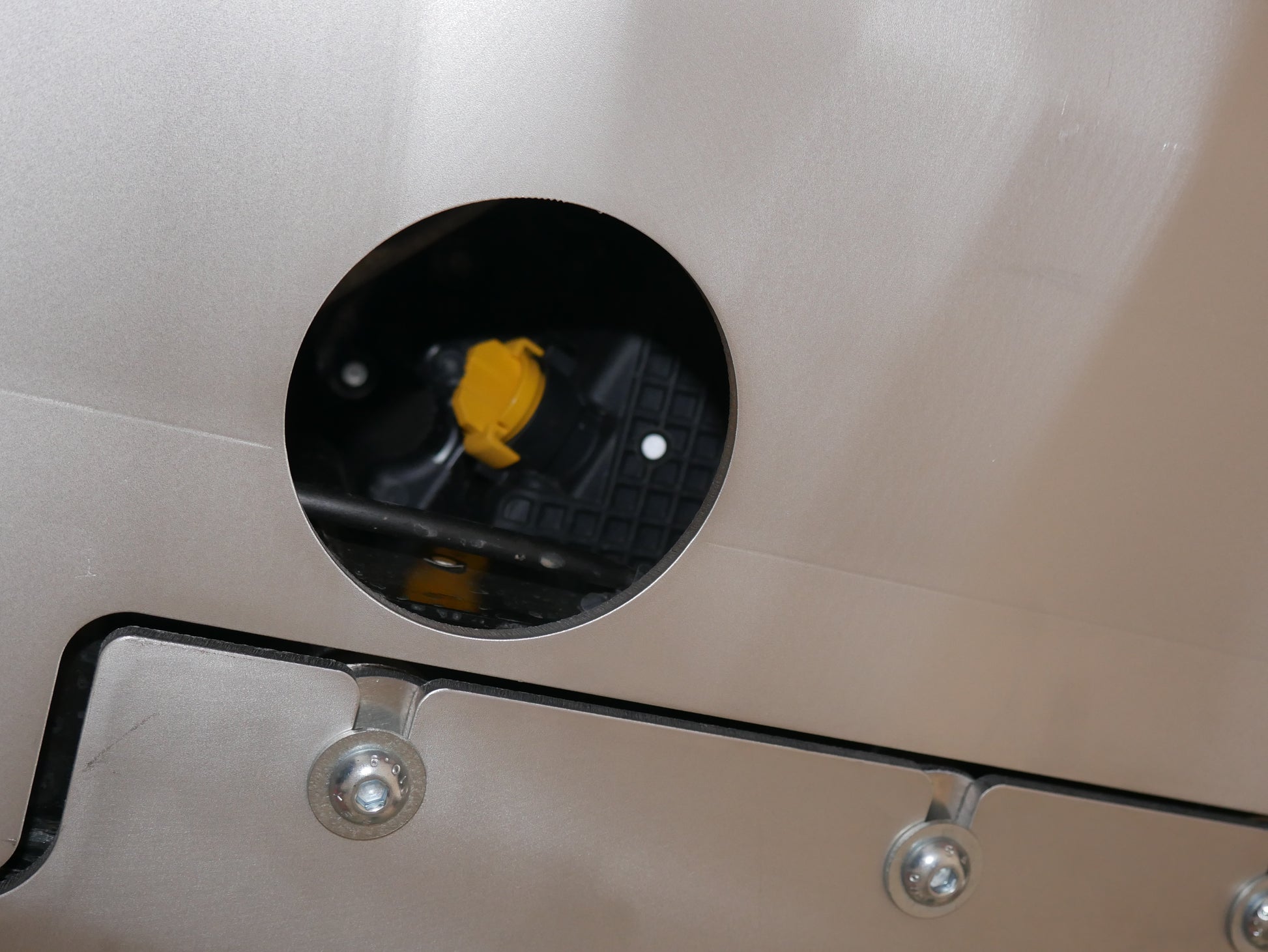

  • Access to oil drain plug
  • Mounts into preexisting holes from the factory
  • Designed to fit a stock vehicle
  • Now compatible with the electronic disconnecting sway bar

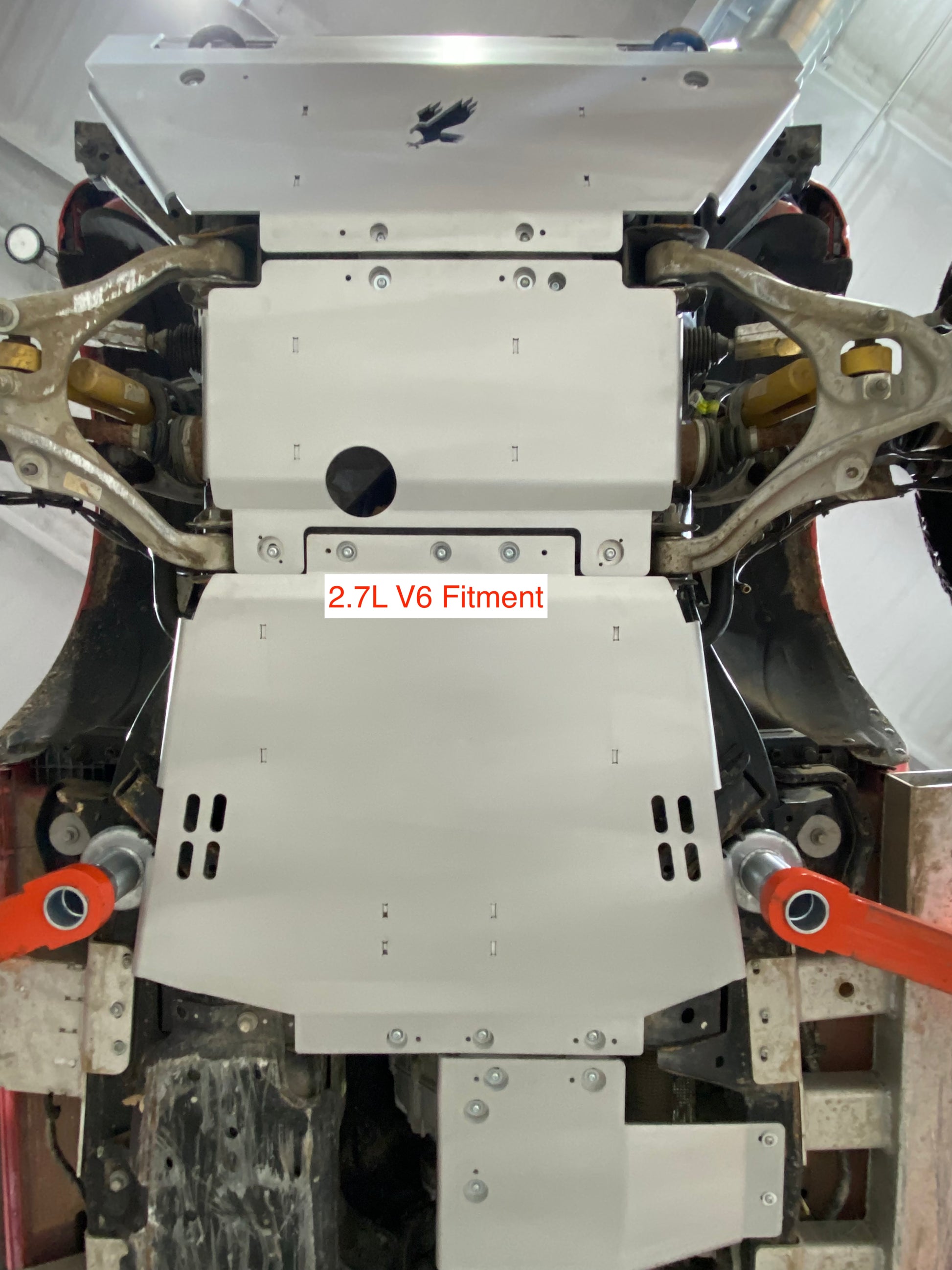

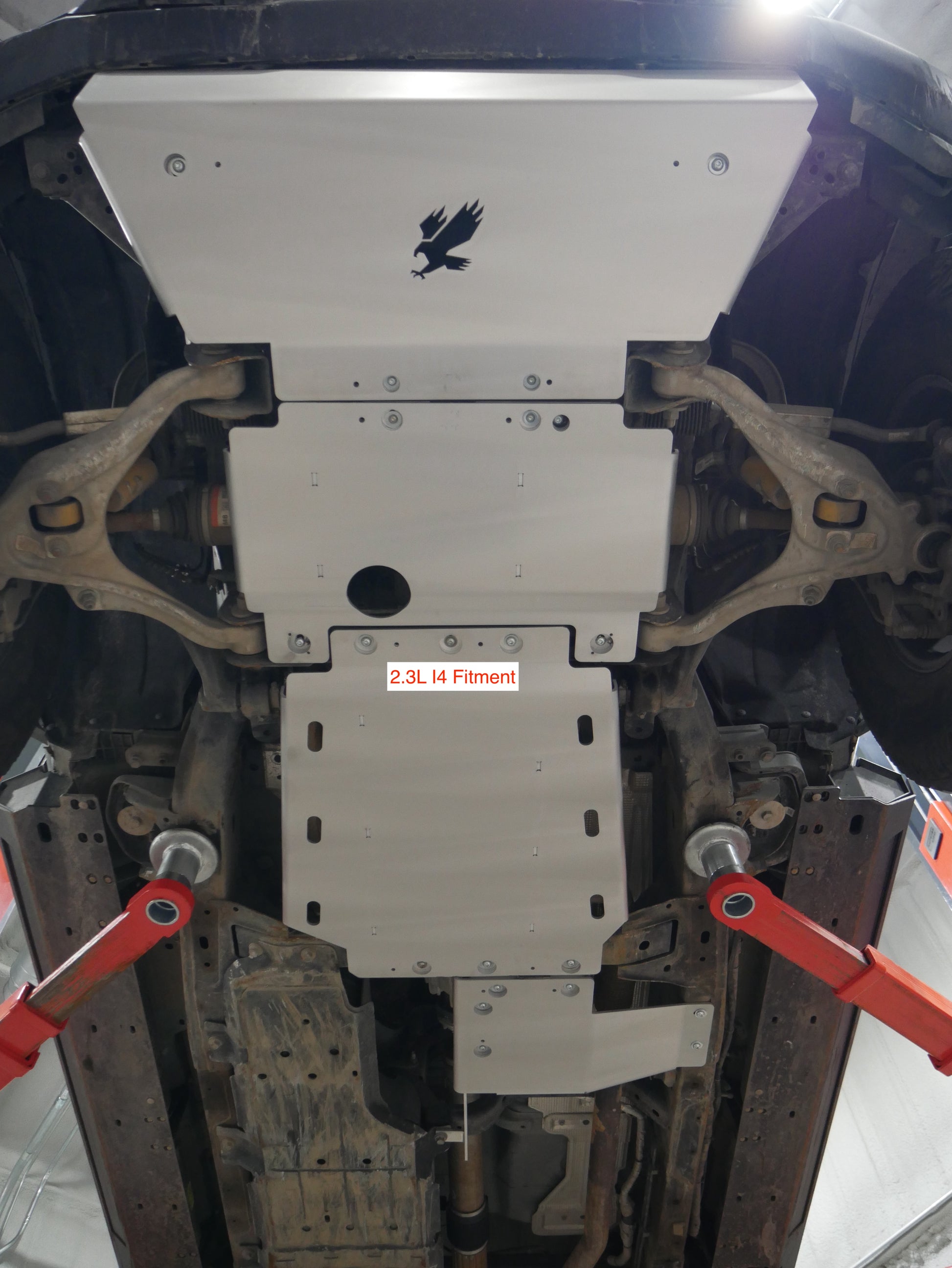

  • Individual designs available for the 2.7L V6 and 2.3L I4. Get maximum coverage without sacrificing ground clearance.

Included with purchase

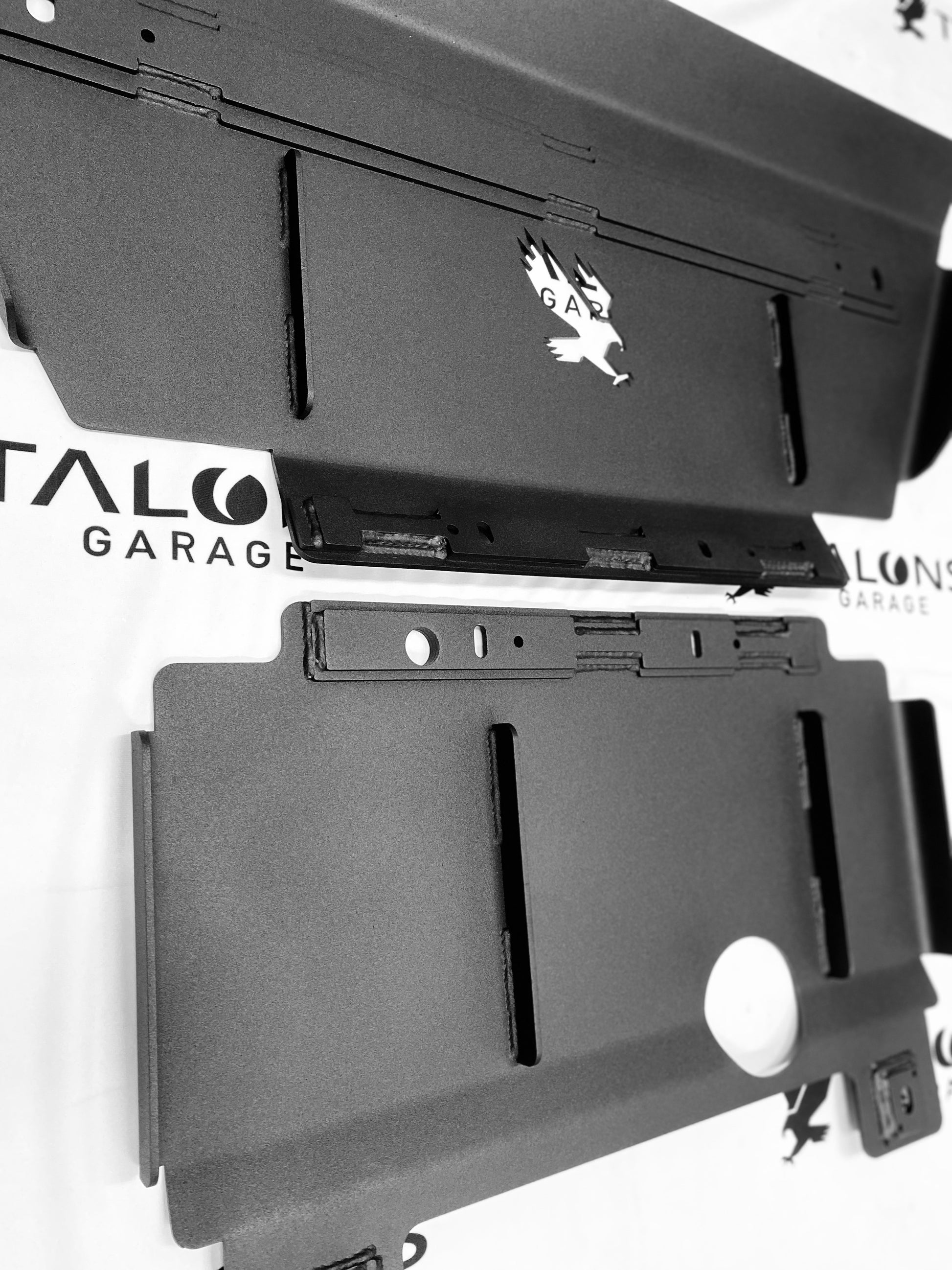

  • Engine, transmission, and transfer case skid plates
  • Zinc-coated button head Allen head hardware

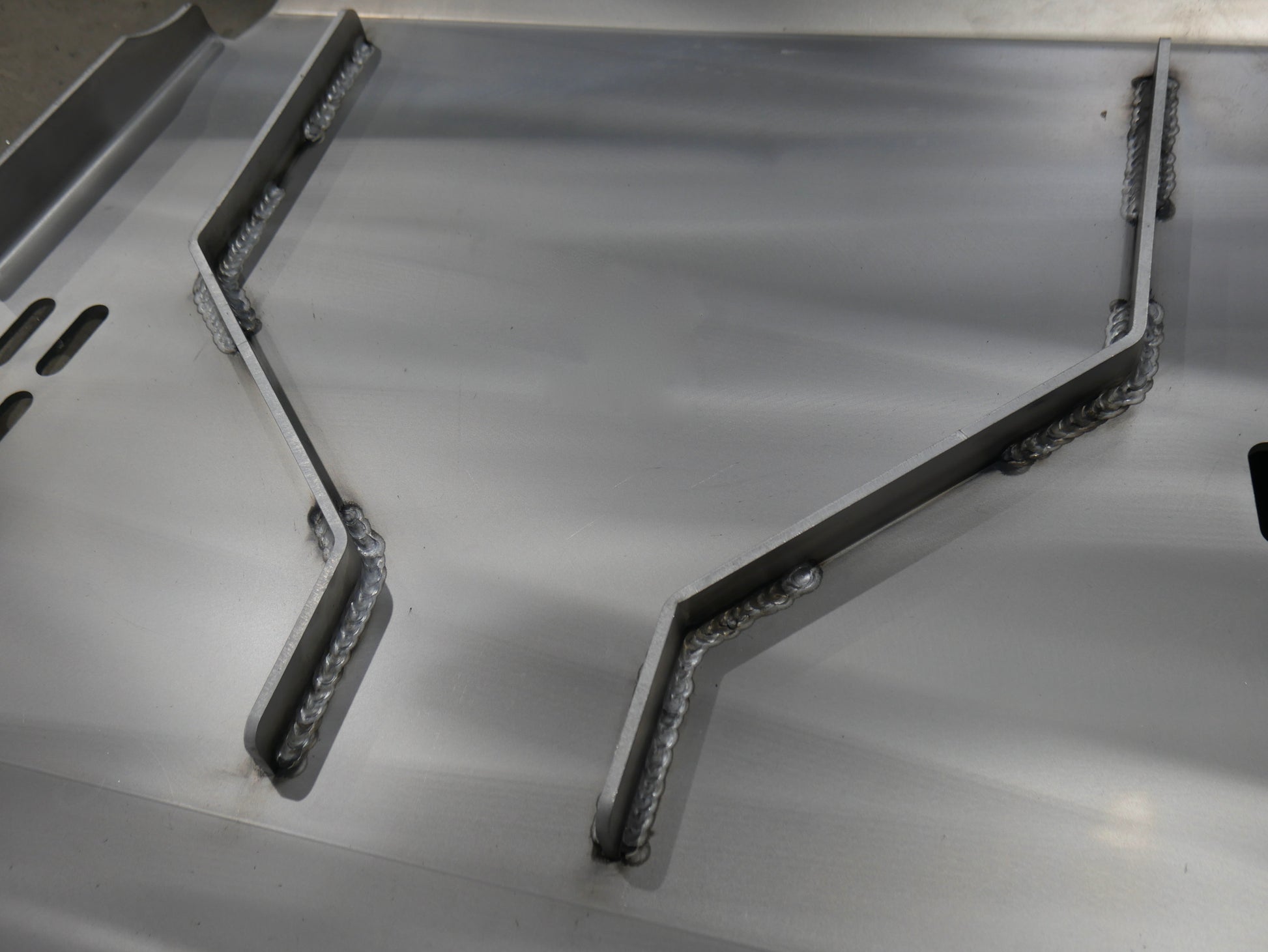

  • **Add-on purchase available: Welded reinforcing ribs. Reinforcing ribs are rails that add increased rigidity around the transmission area for those who perform more moderate to intense off-road courses.

Material

  • CNC Laser Cut
  • Available in 1/4" bare aluminum or 3/16" powder coated steel
  • Aluminum ships uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished

Installation

  • Bolt in installation can be performed by anyone with basic hand tools
  • Click here for installation instructions

Dimensions

Aluminum

  • Engine skid for modular bumper weighs approximately 44 lbs
  • Engine skid for plastic bumper weighs approximately xx lbs
  • Transmission skid for 2.7L V6 weighs approximately 32 lbs
  • Transmission skid for 2.3L I4 weighs approximately xx lbs
  • Transfer case skid weighs approximately 15 lbs

Steel

  • Engine skid for modular bumper weighs approximately 78 lbs
  • Engine skid for plastic bumper weighs approximately xx lbs
  • Transmission skid for 2.7L V6 weighs approximately 58 lbs
  • Transmission skid for 2.3L I4 weighs approximately xx lbs
  • Transfer case skid weighs approximately 25 lbs

Shipping, returns, warranty

  • Link to Policies Page
  • Powder coated products are not returnable
  • Shipping in 1-2 weeks
  • If you are interested in local pick up please select "Local Pick Up" as your shipping preference at check out. We are located in Northwest Houston (Willowbrook, zip code 77066).
