Toyota Tacoma | Catalytic Converter Shield | 2nd Gen | 2005-2015
Toyota Tacoma | Catalytic Converter Shield | 2nd Gen | 2005-2015
Regular price
$249.99 USD
Regular price
$299.99 USD
Sale price
$249.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Black Friday Savings!
A catalytic converter shield for your 2005-2015 Toyota Tacoma. Crafted out of 1/4" 5052 aluminum or 3/16" steel, making it an ideal cat theft deterrent and an off-road skid plate. It's an all-in-one design concept! This design boasts a heavy duty shield that runs from crossmember to crossmember with added attachments for additional catalytic converter protection.
Caution: Will fit the 6-lug 2WD Pre-runner, but will not fit the 5-lug 2WD Base model.
Note: On 4-cylinder models, this plate will only cover the front catalytic converter.
Fitment
- Designed to fit the V6 and 4-cylinder Tacomas years 2005-2015.
- Caution if you have a 4-cylinder Tacoma: Will fit the 6-lug 2WD Pre-runner, but will not fit the 5-lug 2WD Base model. Fitment has NOT been confirmed on the 4-cylinder Tacoma with a 4x4 drivetrain. On 4-cylinder models, this plate will only cover the front catalytic converter.
- Select the appropriate drivetrain prior to adding to your cart
- Ventilation holes to keep temperatures down around the transmission
- Mounts into pre-existing holes from the factory
- Not compatible with lift kits that require subframe modifications (usually lifts greater than 3 inches)
- Compatible with a manual transmission
- In some instances, there may be a tab on a preexisting OEM/TRD skid plate that will need to be bent slightly to allow the transmission shield to slide into place. This does not impact the integrity of either shield

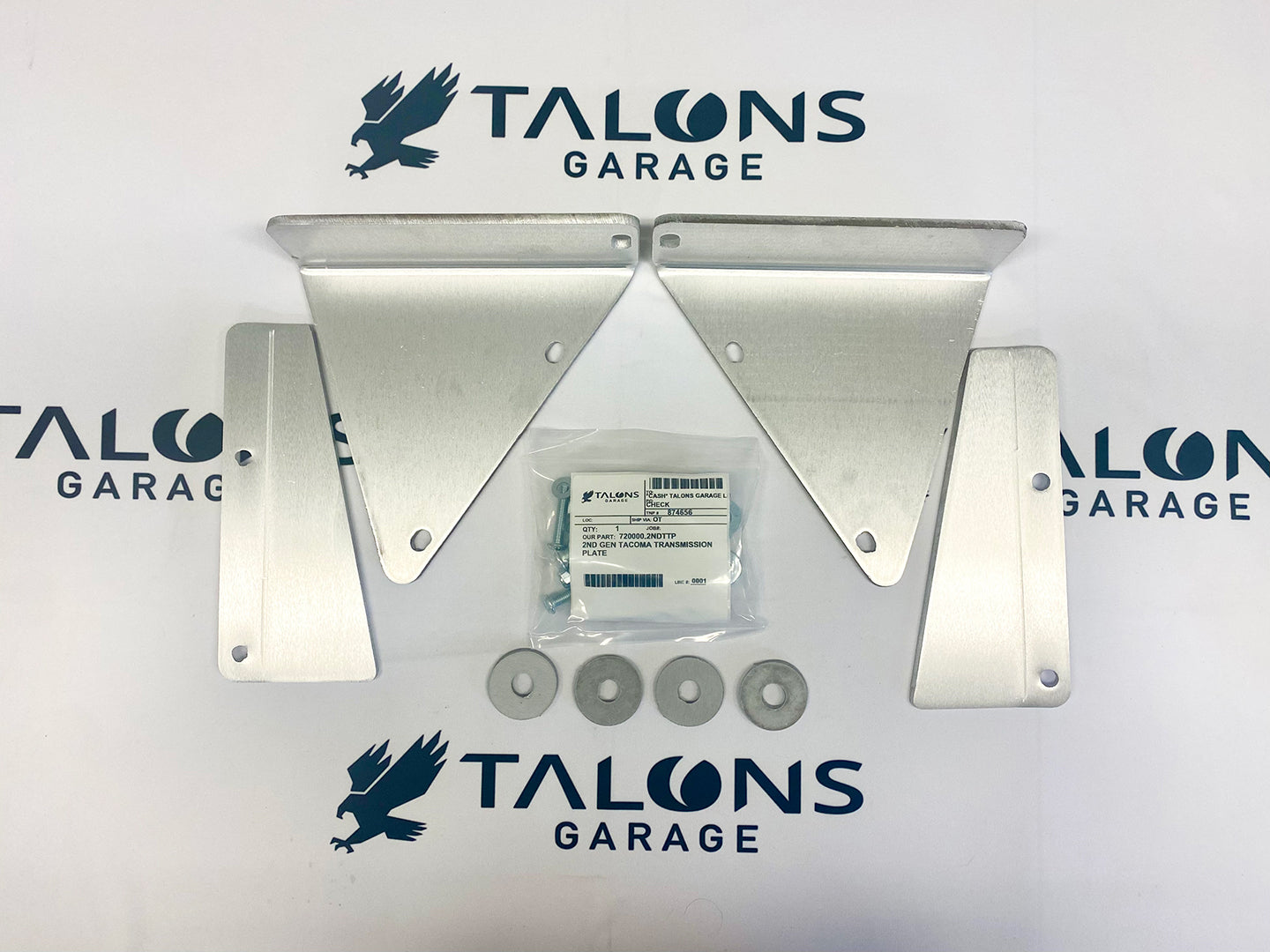

Included with purchase
- Transmission skid/cat shield
- Zinc-coated button head Allen head hardware
- Add-on Purchase: Security bolts offered as an add-on purchase. Link to product page here.
Material

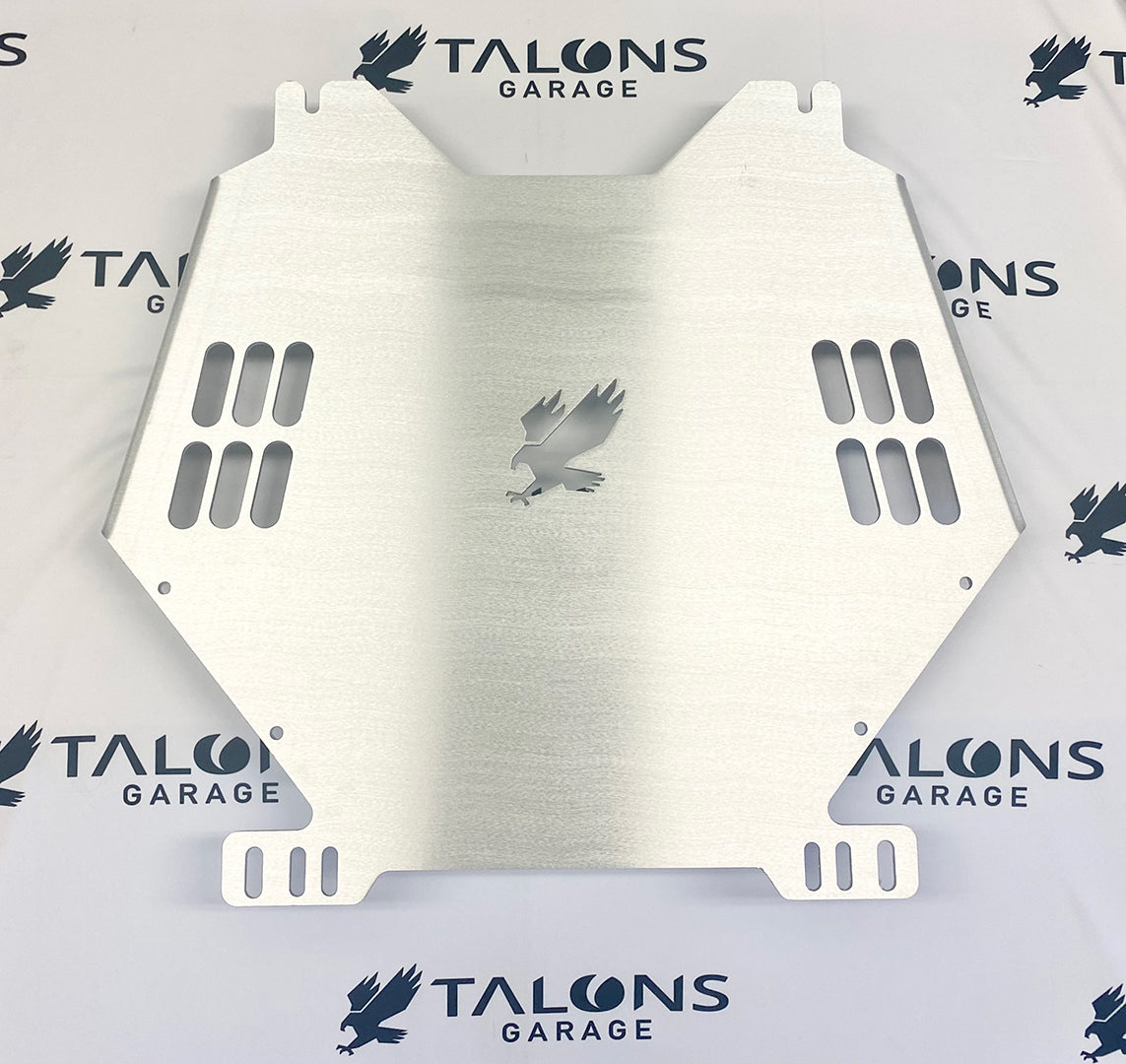

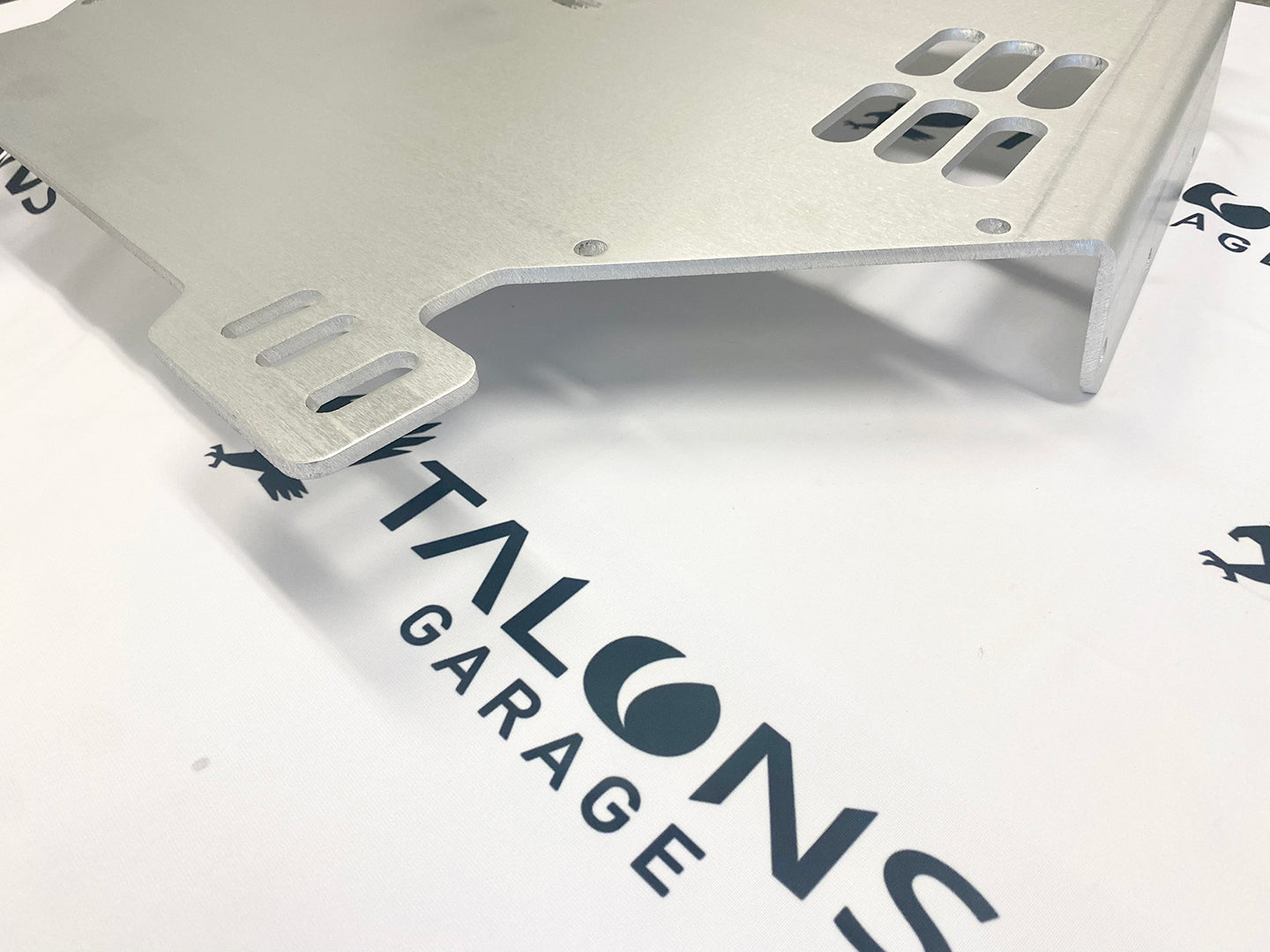

- Aluminum: CNC Laser Cut out of 1/4" 5052 Aluminum - Will not rust!
- Ships as bare metal
- All aluminum plates ship uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished.

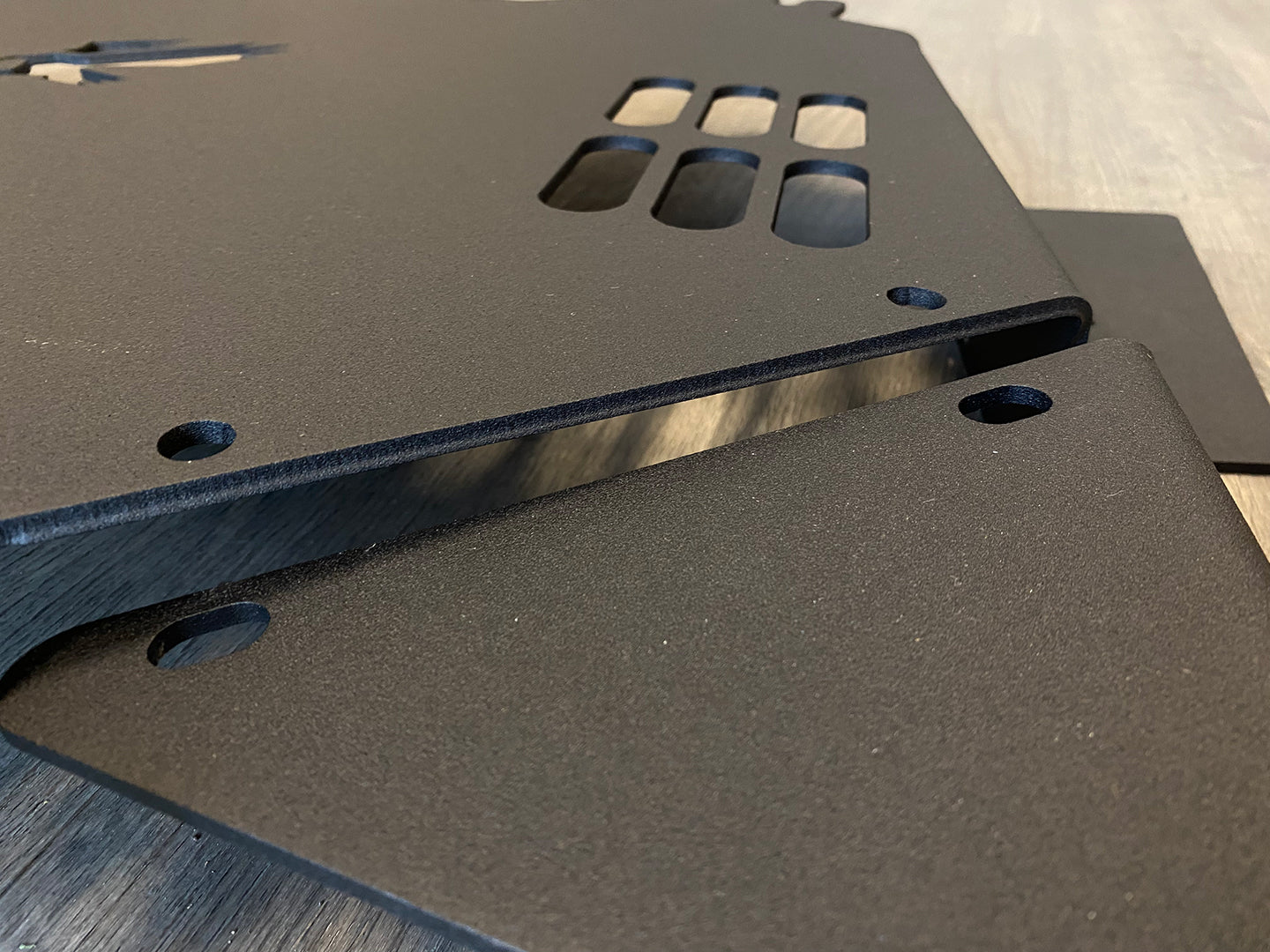

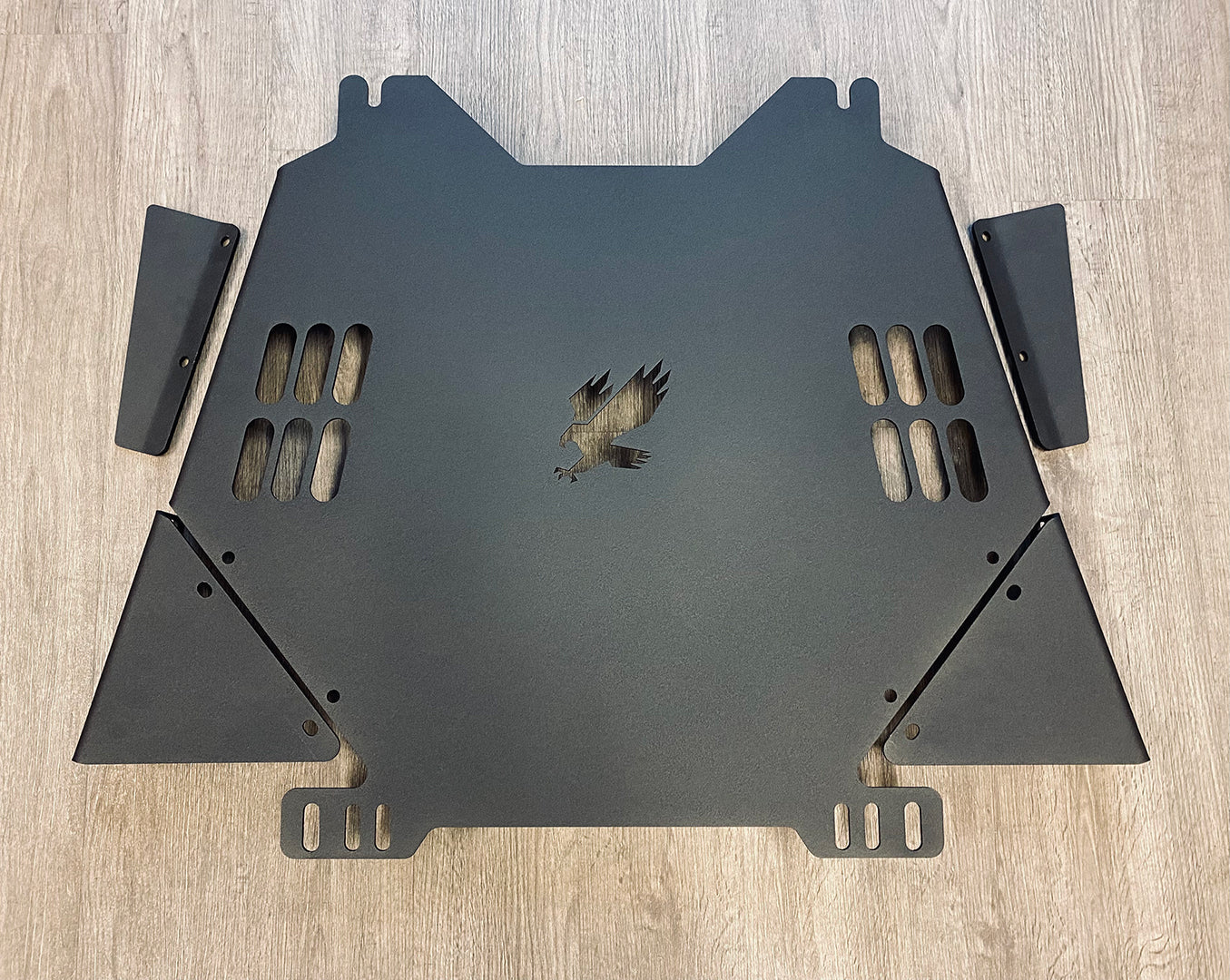

- Steel: CNC Laser Cut out of 3/16" steel. Powder coated in a black wrinkle finish

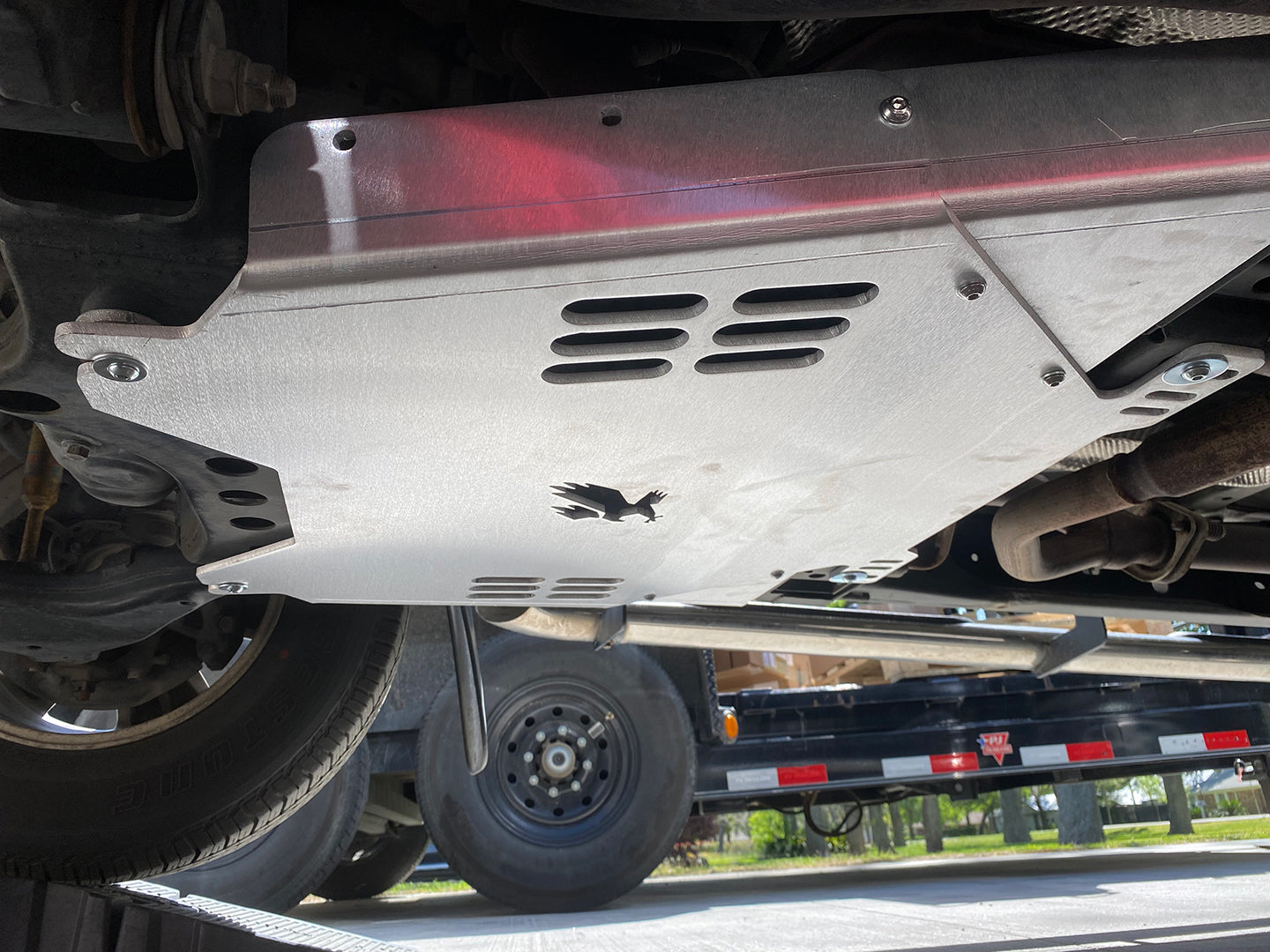

Installation
- Mounts into pre-existing holes from factory
- Bolt in installation, no drilling required, can be performed by anyone with basic hand tools
- Some trucks may have a tab on the OEM skid plate that needs to be cut or bent out of the way for installation.
- Click here for installation instructions
Dimensions
- Weighs approximately 25 lbs in aluminum and 49 lbs in steel
Shipping, returns, warranty
- Click here for our policies page
- Powder coated products are not returnable
- Steel and bare aluminum shipping in 1-2 business days
- Powder coated aluminum shipping in 1-2 weeks
- If you are interested in local pick up please select "Local Pick Up" as your shipping preference at check out. We are located in Northwest Houston (Willowbrook, zip code 77066)
