Toyota Tundra 2022-2023 | Engine Skid Plate
Toyota Tundra 2022-2023 | Engine Skid Plate
Couldn't load pickup availability
Confirmed to fit the 2022-2023 Tundra non-hybrid and hybrid with a 4x4 drivetrain.

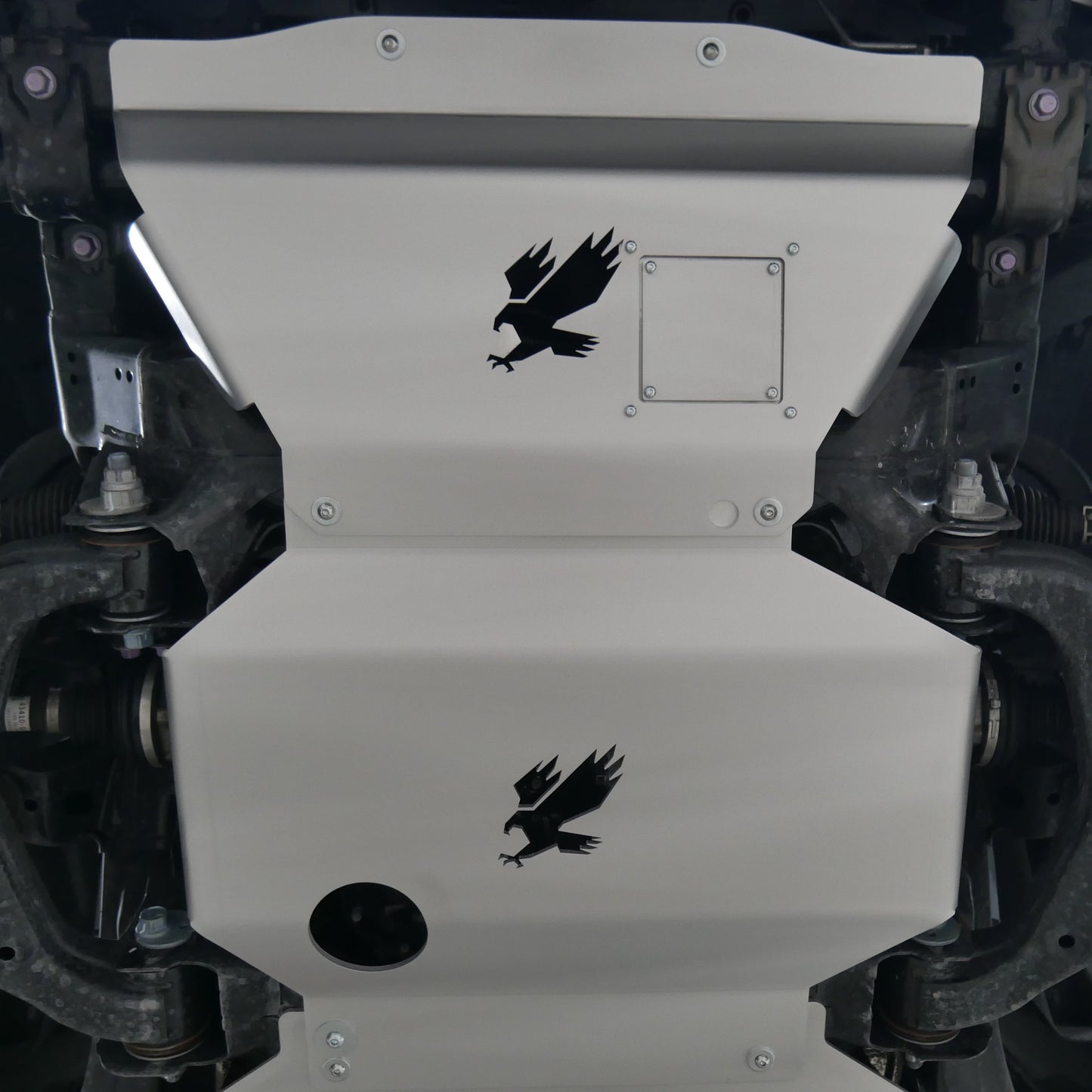

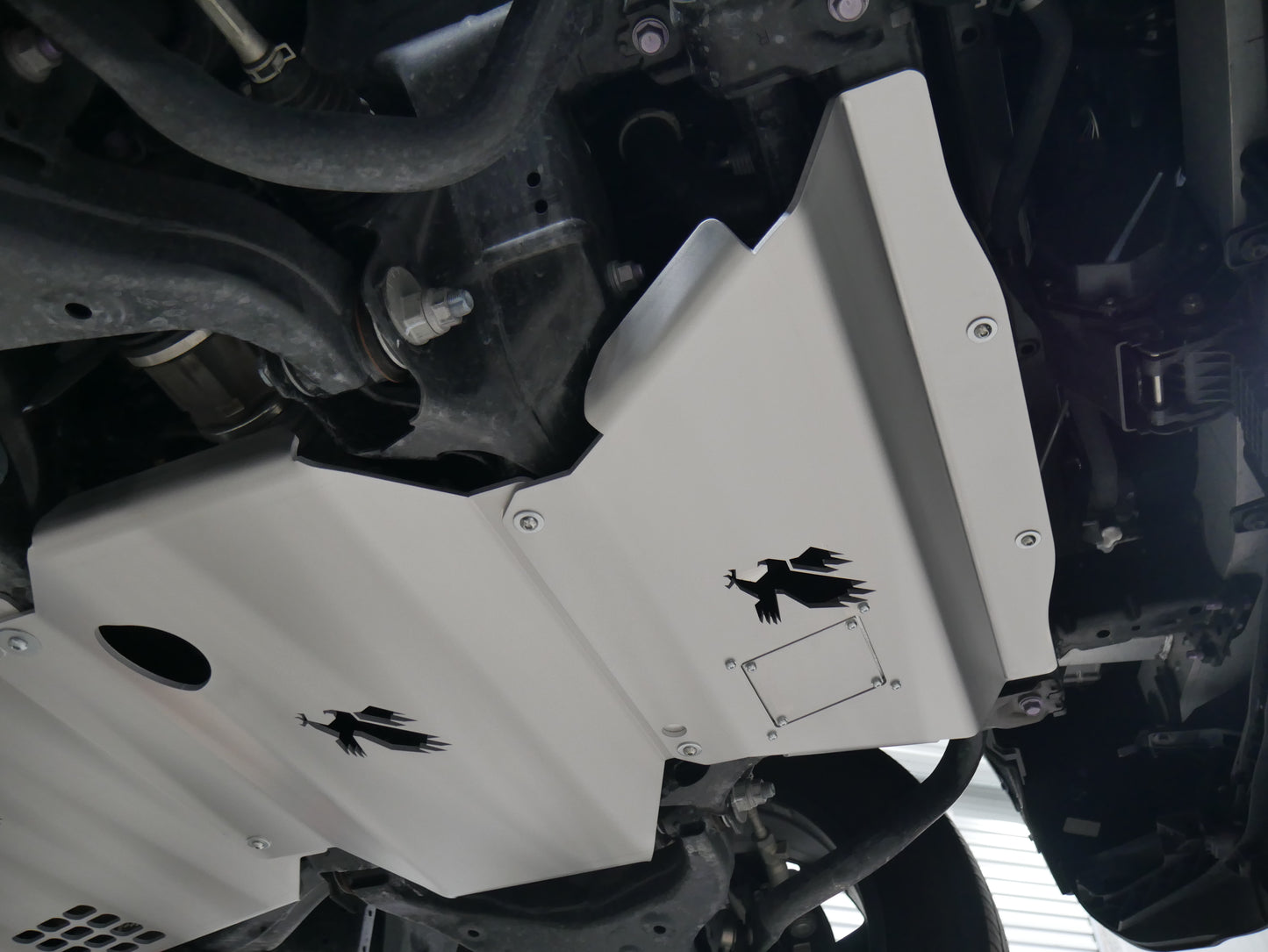

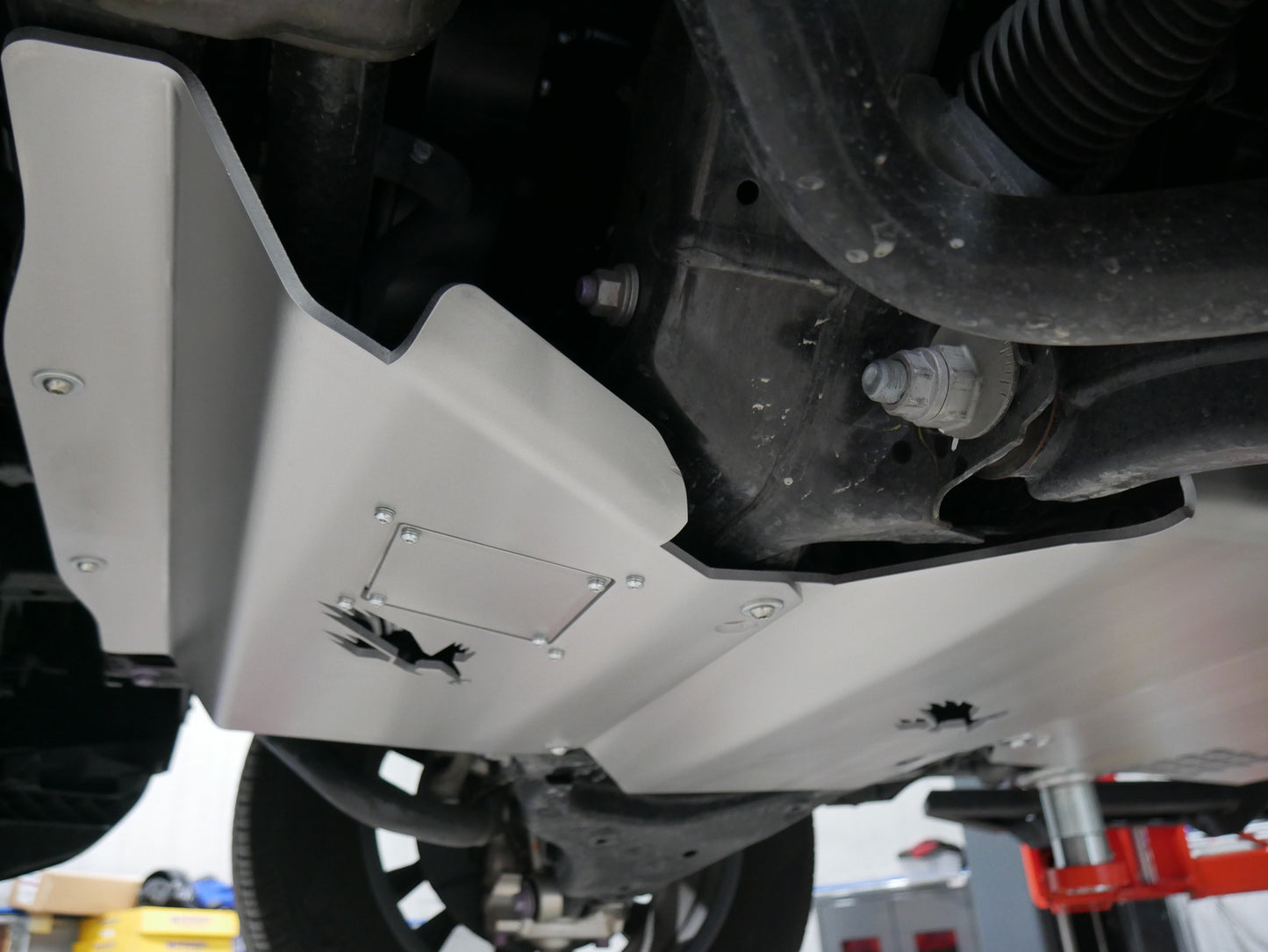

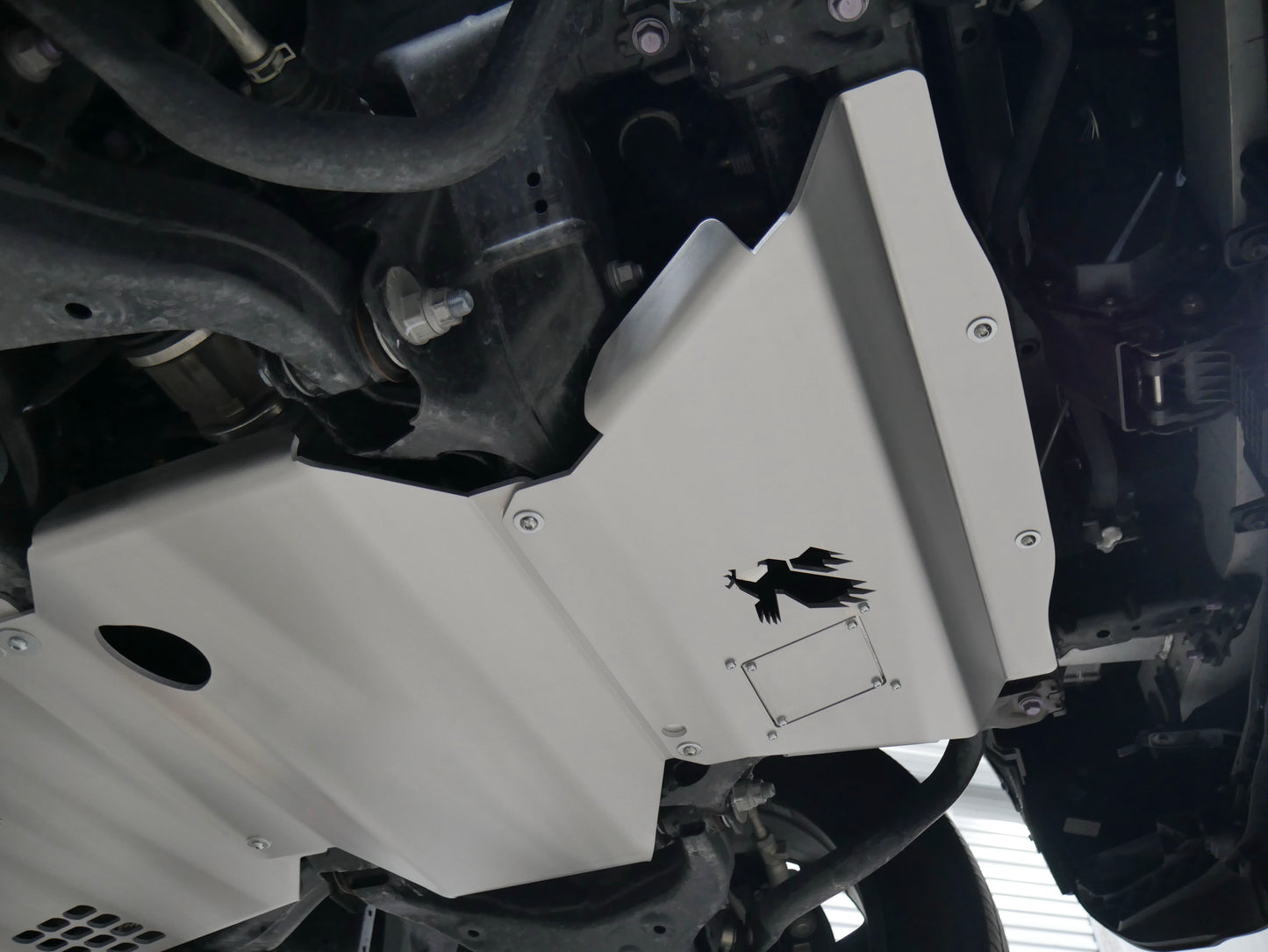

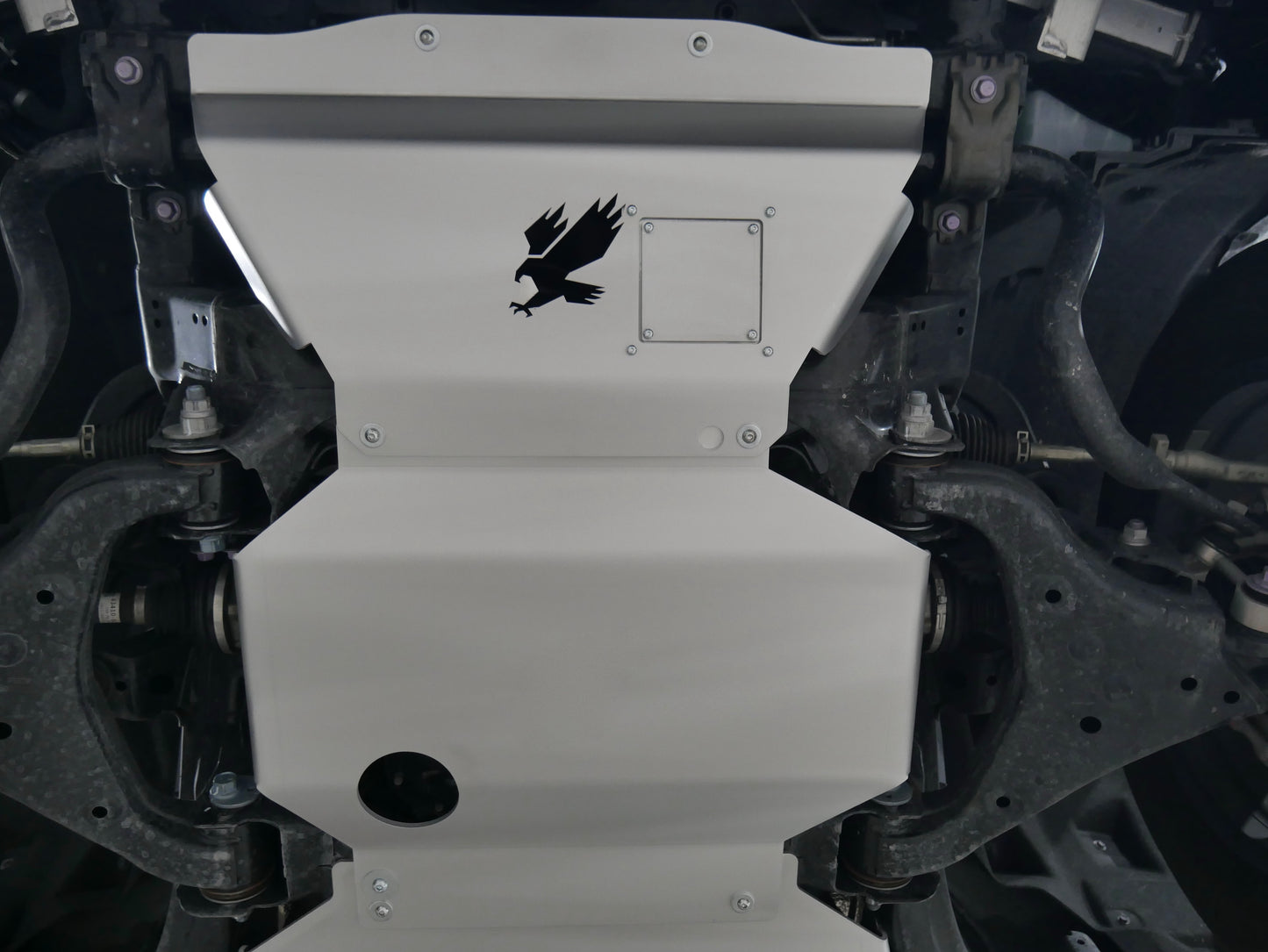

We just finished the design of the 2022-2023 Tundra engine skid plate. This engine skid fits perfectly with the Tundra transmission/catalytic converter shield. Please note, the engine skid will not provide protection to your catalytic converters. Click here to view our catalytic converter shields.

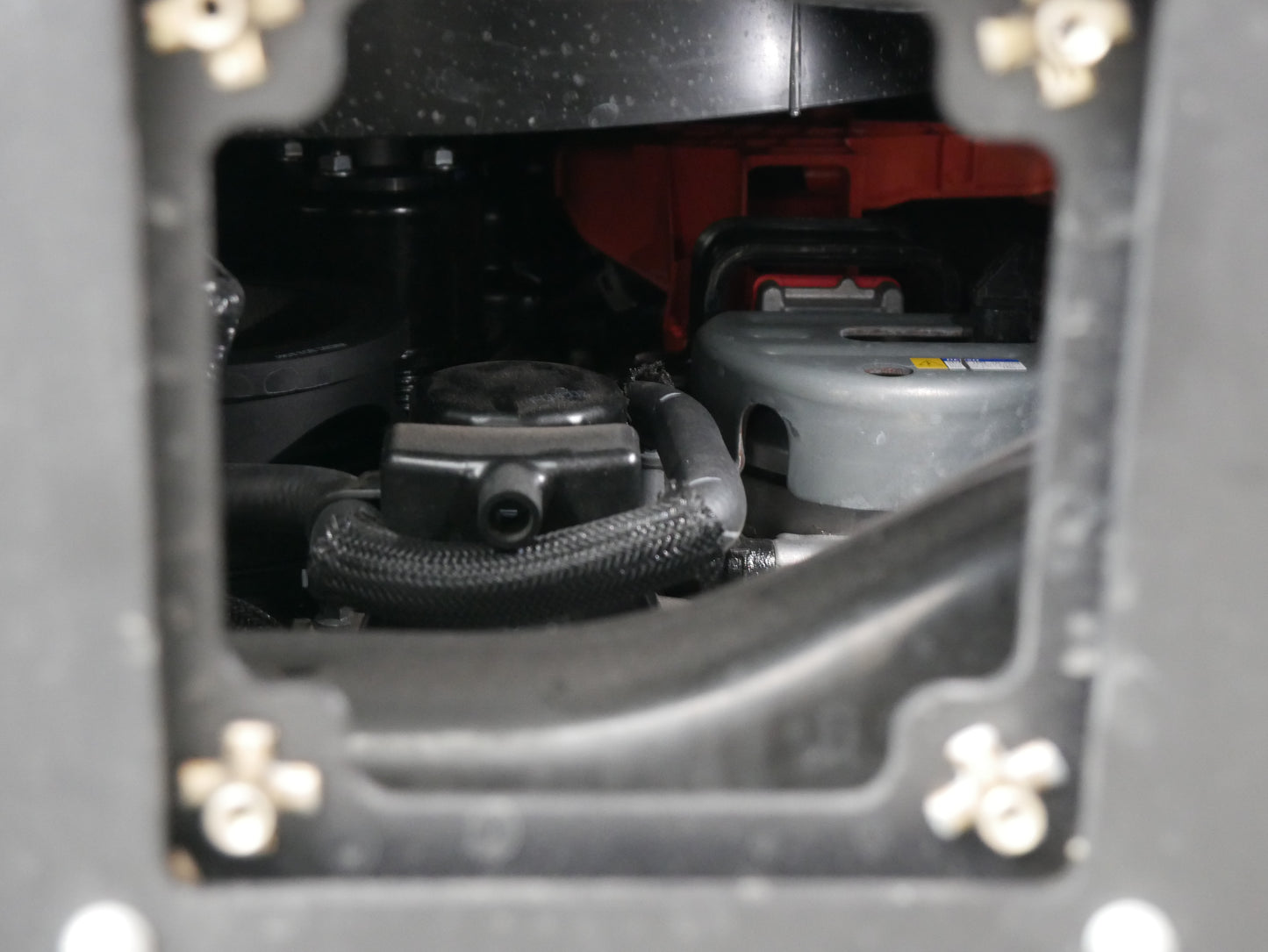

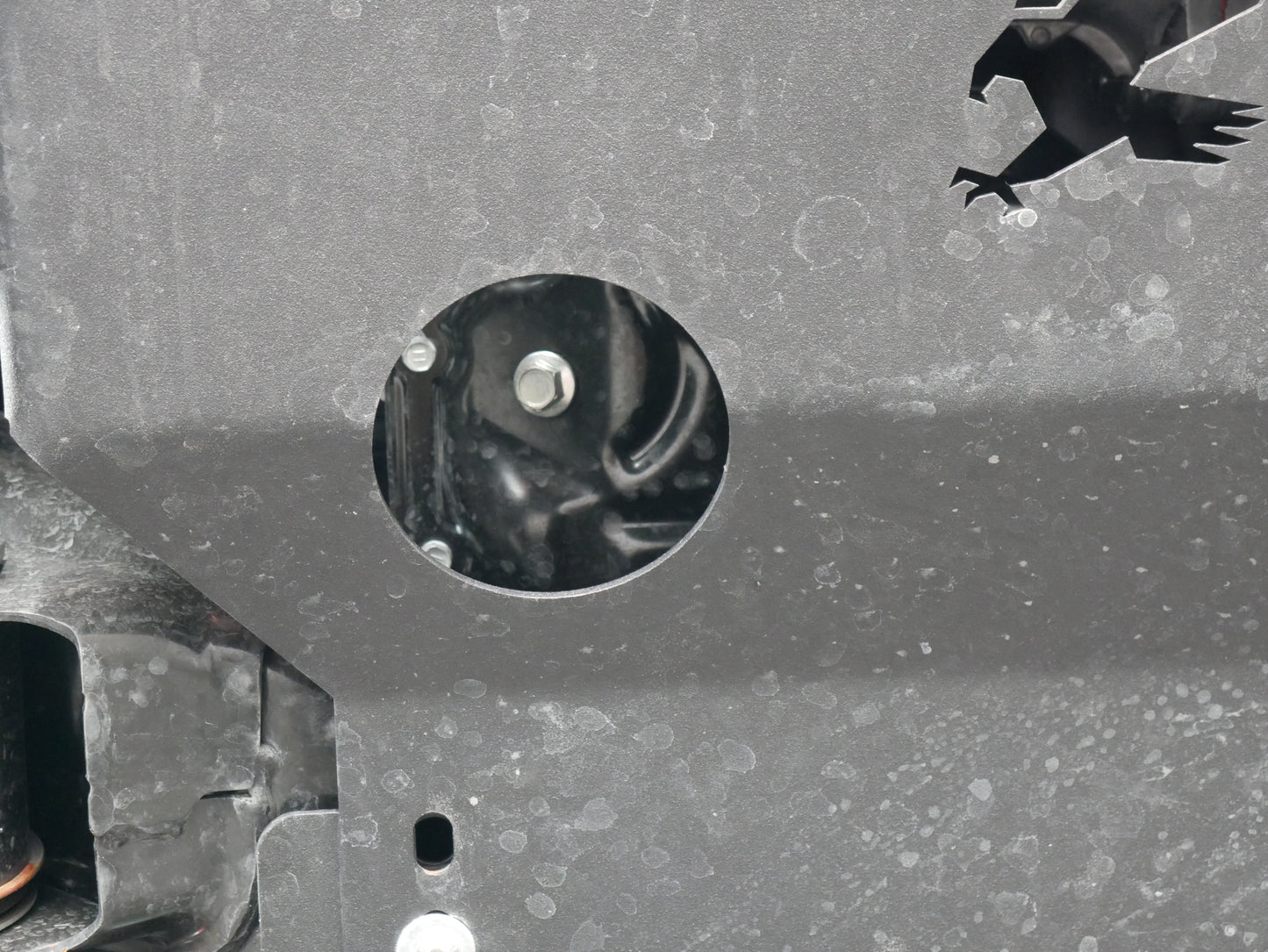

Now offered with access to the oil drain plug
***We are working on powder coating process so there may be some imperfections in the coating. Because of this, all powder-coated plates are on sale until further notice. Powder coat is a black wrinkle finish. Sale price will be $264.99 until we get our powder coating consistent. Sale items are non-refundable.***
Fitment
- 4x4 drivetrain only
- Now offered with access to the oil drain plug
- Mounts into preexisting holes from the factory

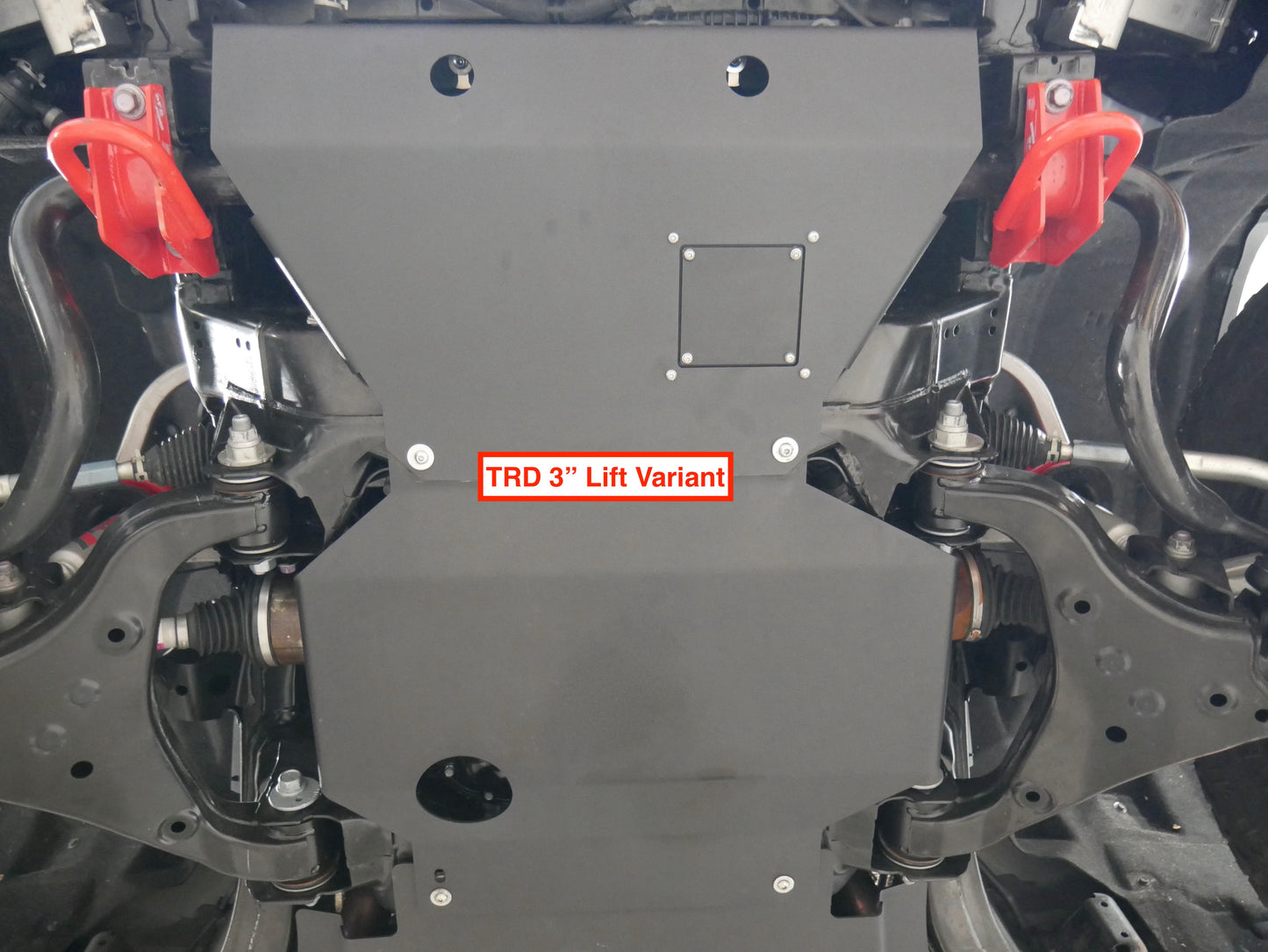

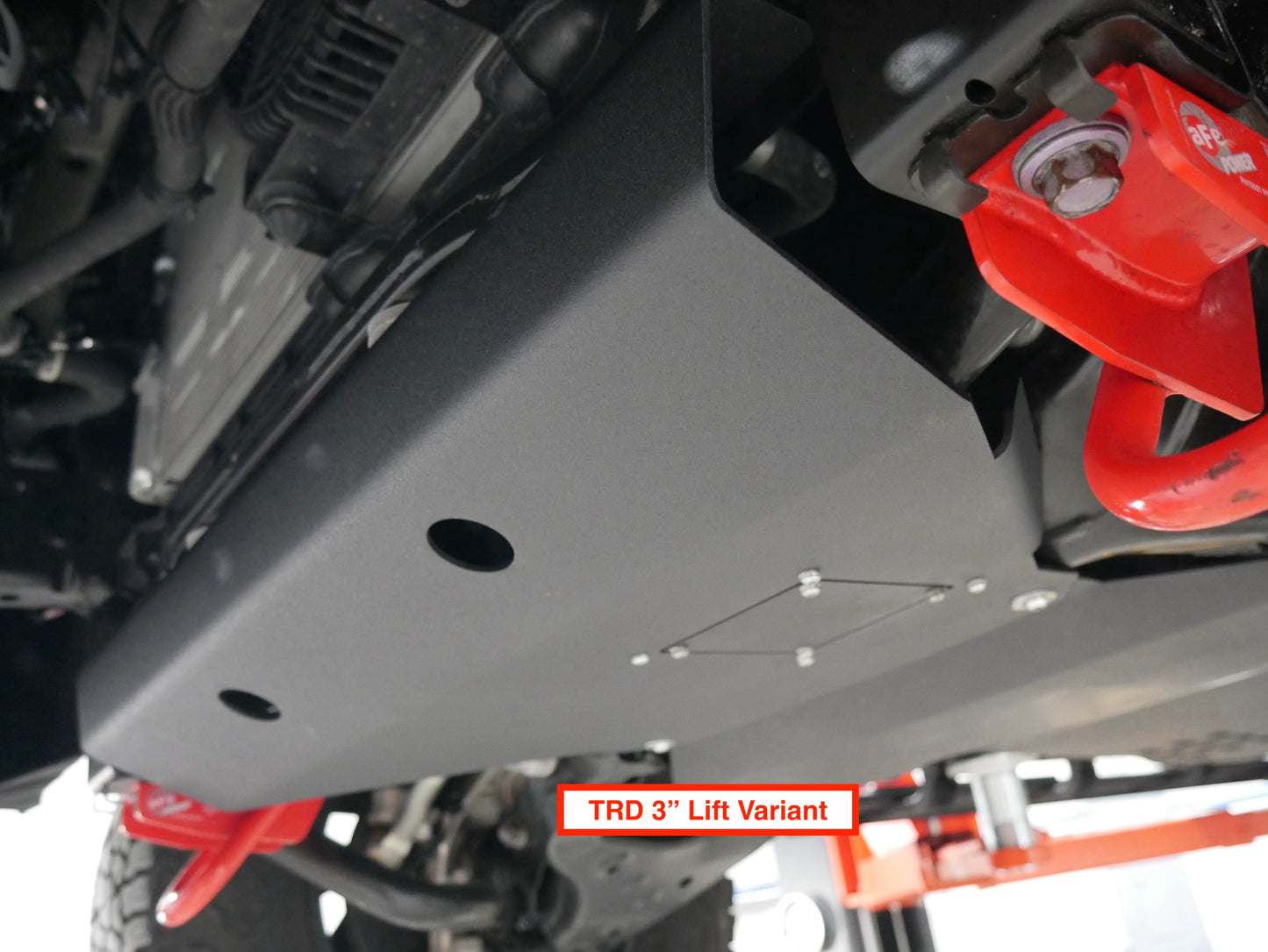

- Not compatible with lift kits that require subframe modifications (usually lifts greater than 3 inches)
- At this time not compatible with a diff drop. We are working on a spacer option.
Included with purchase
- Engine skid plate
- Zinc-coated button head Allen head hardware
Material
- CNC laser cut out of 1/4" 5052 aluminum or 10 gauge powder-coated steel
- Powder coated in a black wrinkle finish
- All aluminum plates ship uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished.
Installation
- Easy bolt-in installation can be performed by anyone with basic hand tools
- Click here for installation instructions
Dimensions
- Aluminum: 29x4x32 inches and 29 lbs.
- Steel: 29x4x32 inches and 39 lbs.
Shipping, returns, warranty
- Click here for our policies page
- Currently at a 1 week lead time
- If you are interested in local pick up please select "Local Pick Up" as your shipping preference at check out. We are located in Northwest Houston (Willowbrook, zip code 77066).
