Lexus GX460 | Skid Plate Package | 2010-2023

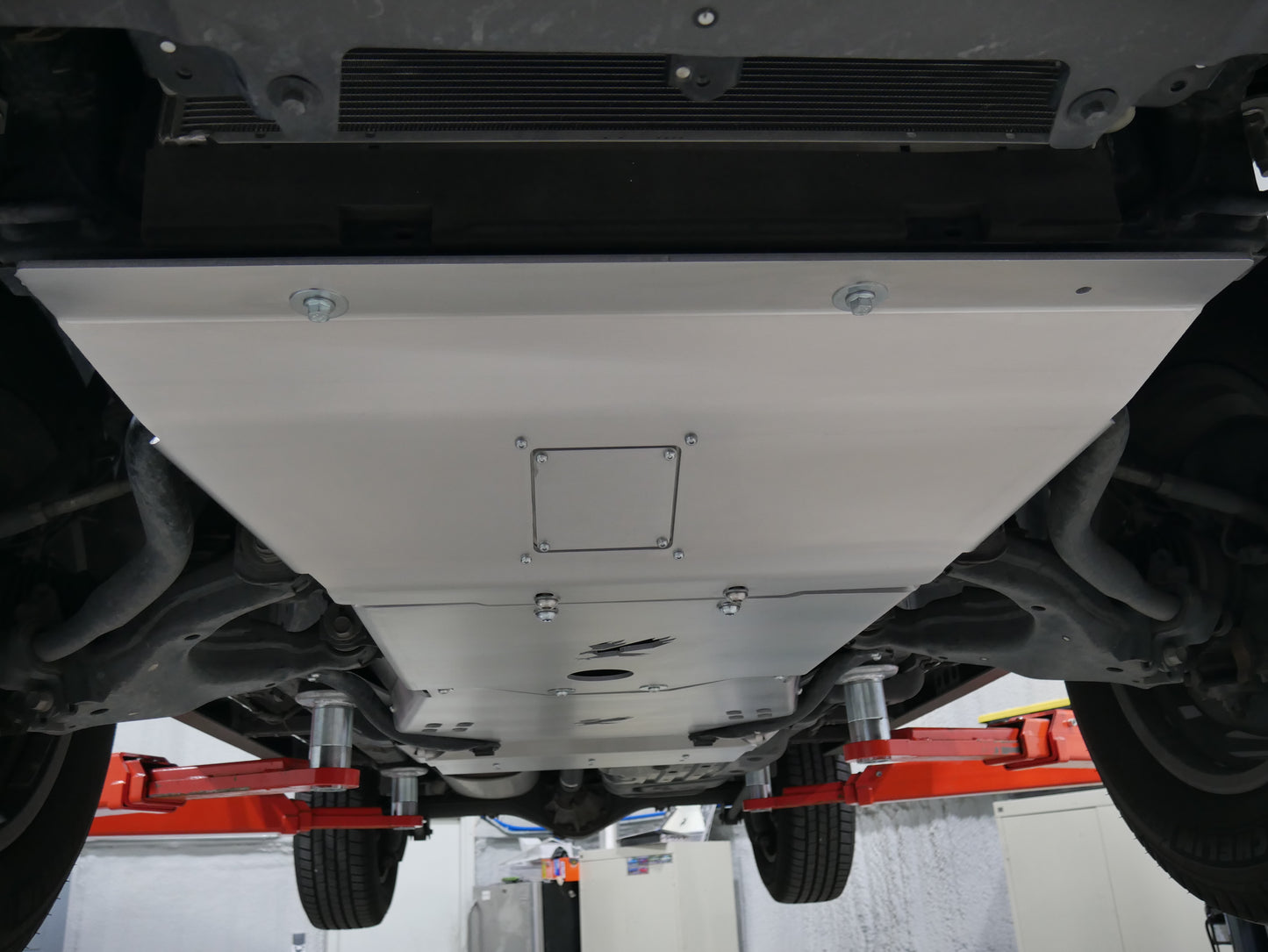

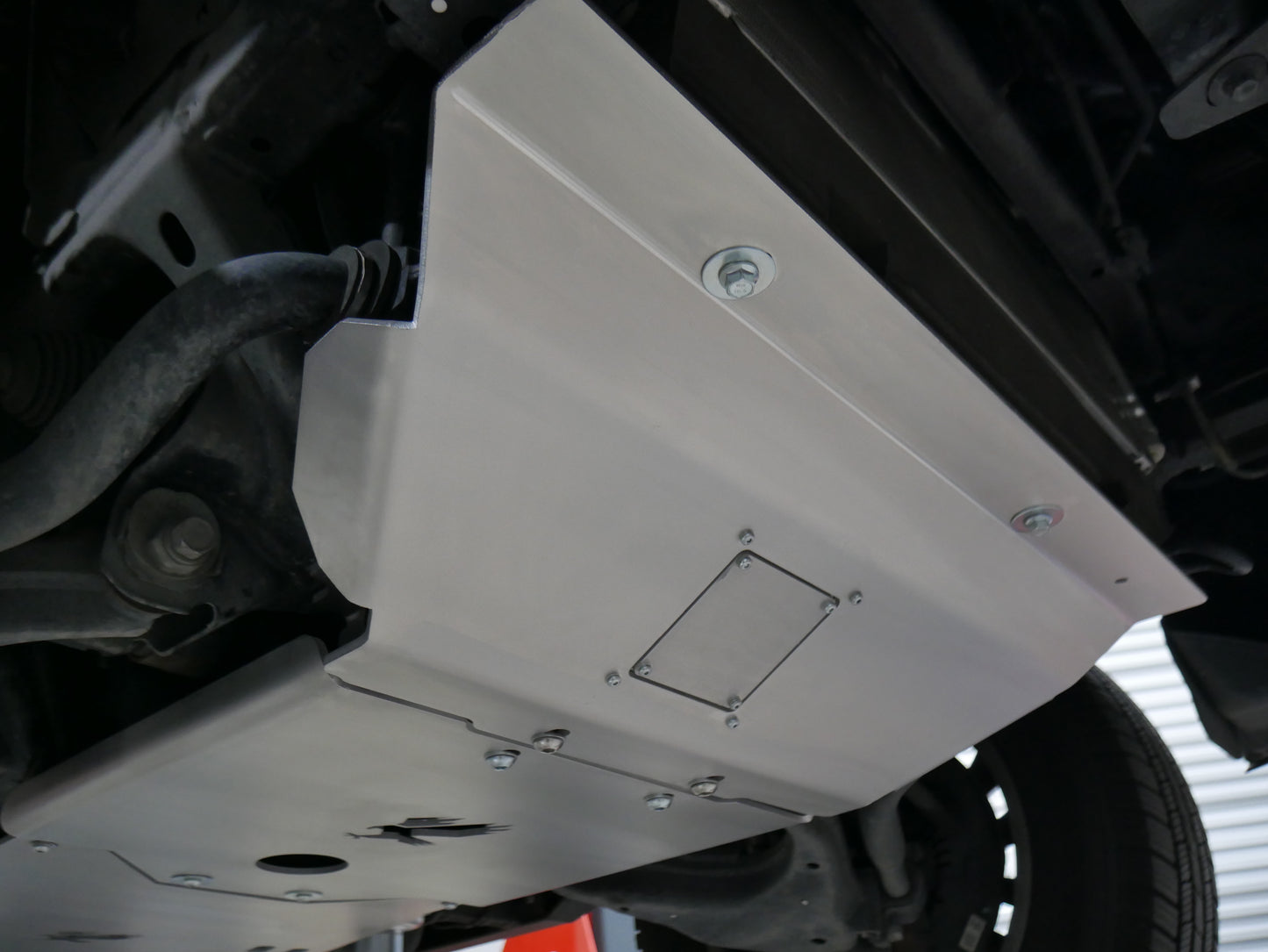

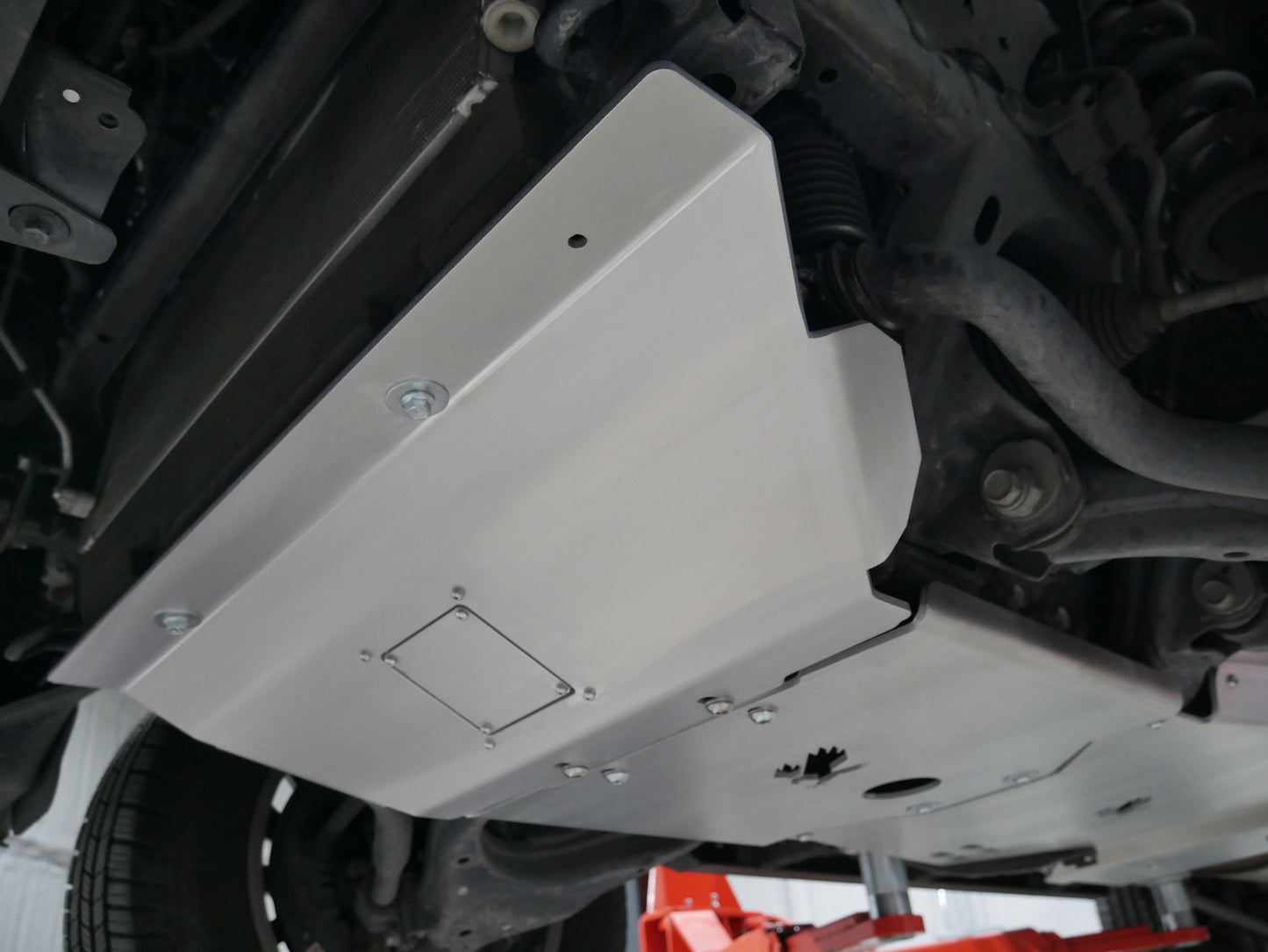

• Engine Skid Plate
  • Access to oil drain plug and oil filter without having to uninstall

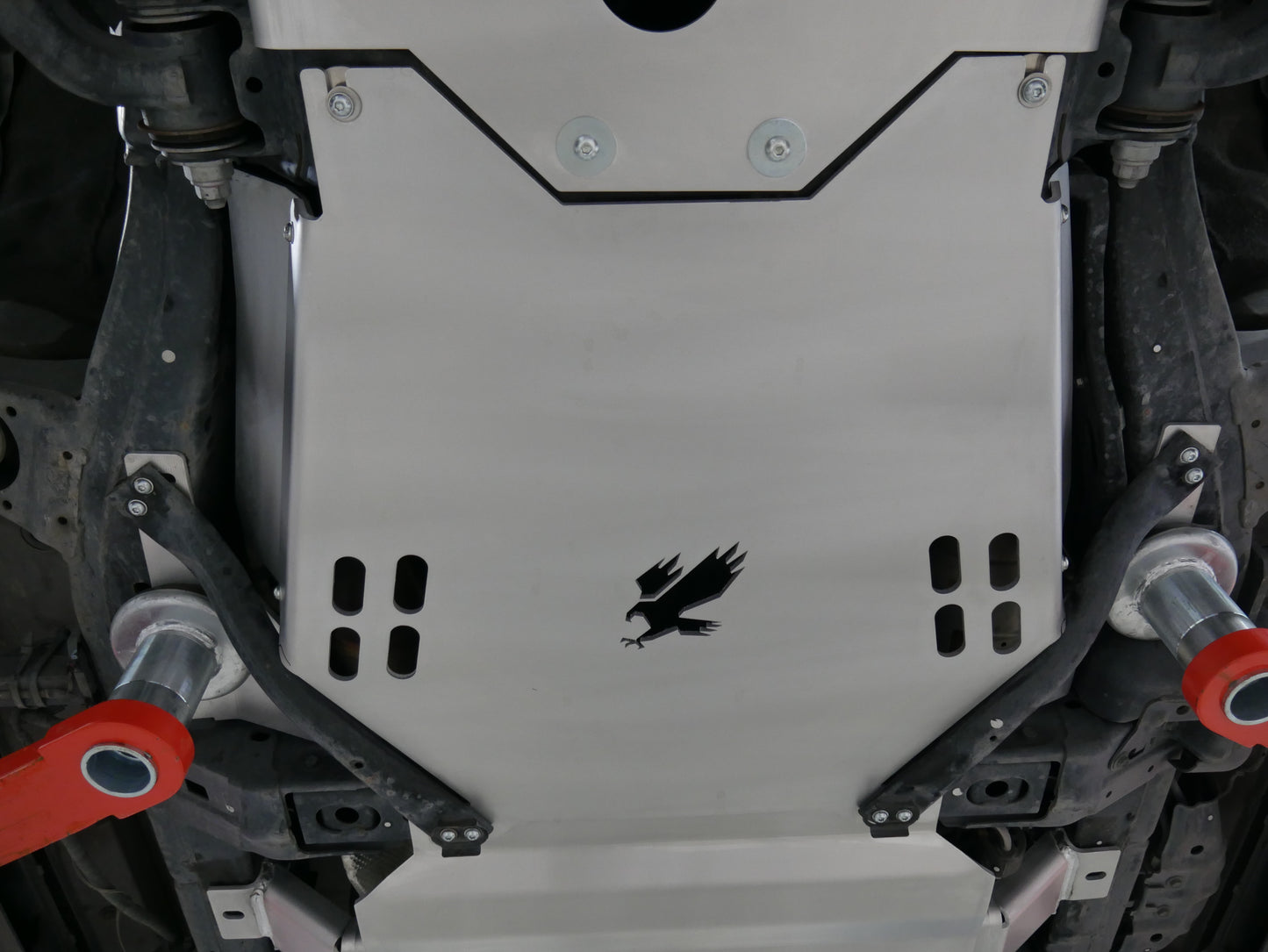

• Transmission/Catalytic Converter Shield

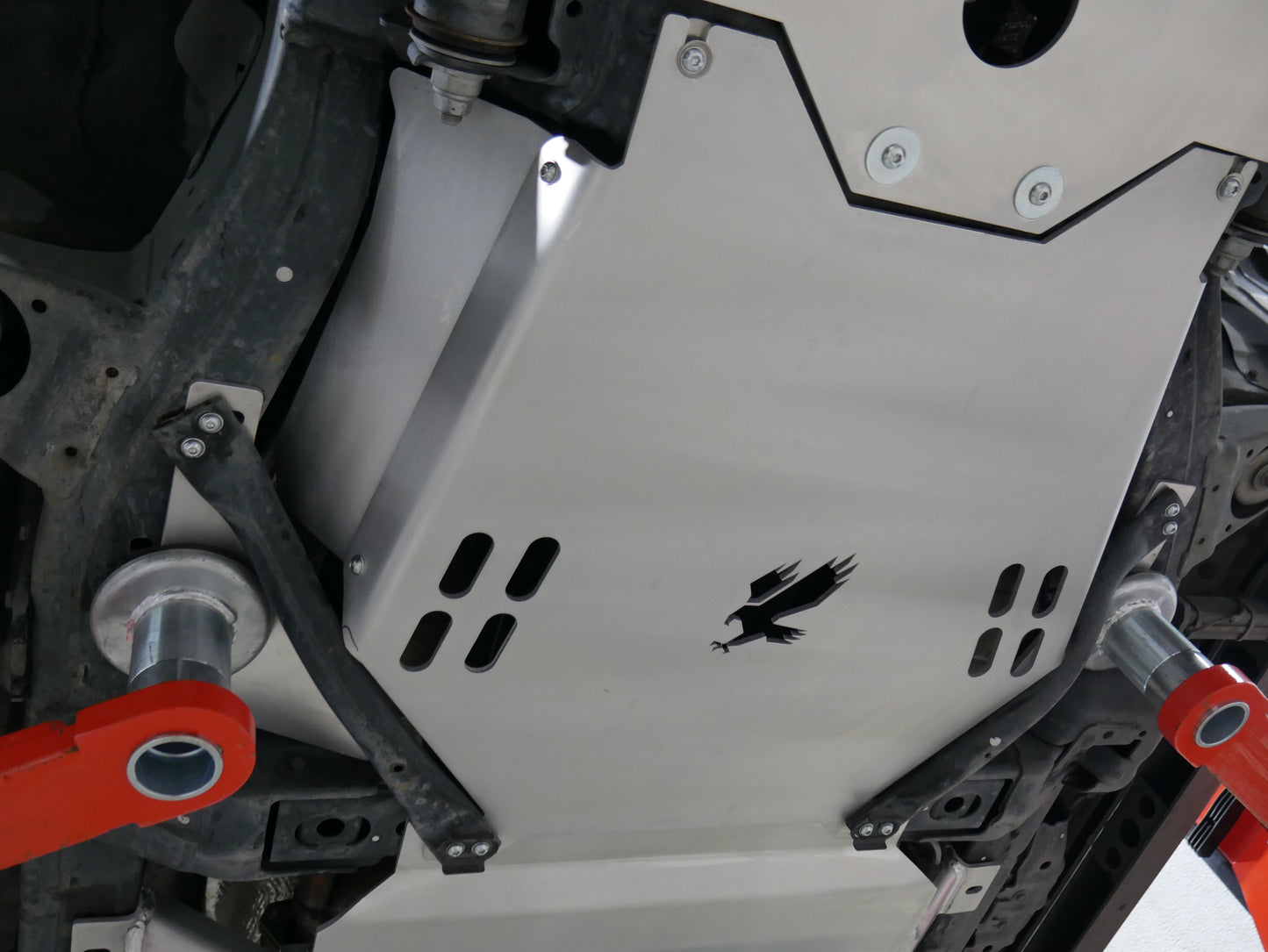

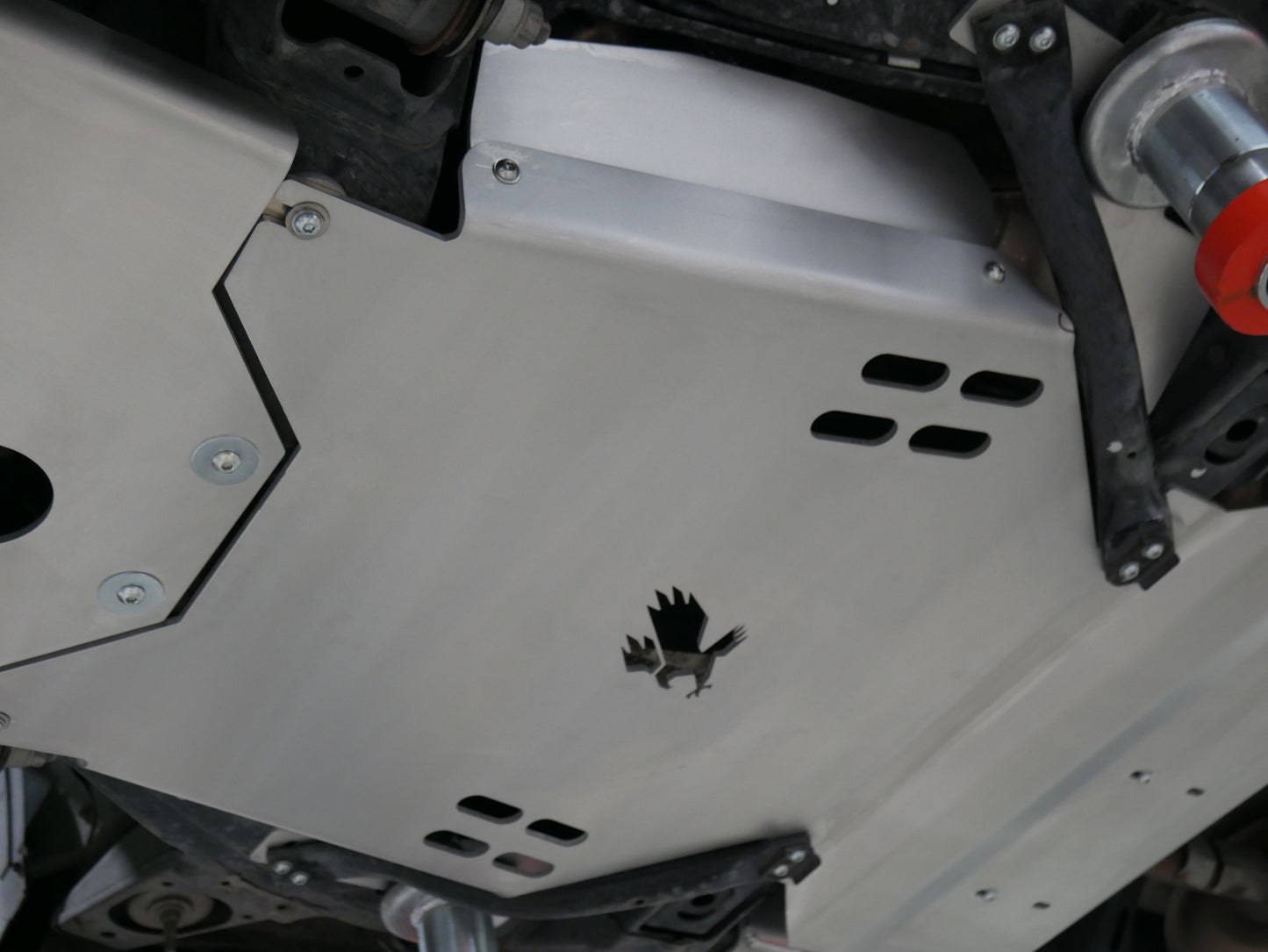

  • Ventilation holes to keep temperatures down around the transmission
  • Protection to the transmission as well as the catalytic converters
  • Mounts into preexisting holes from the factory

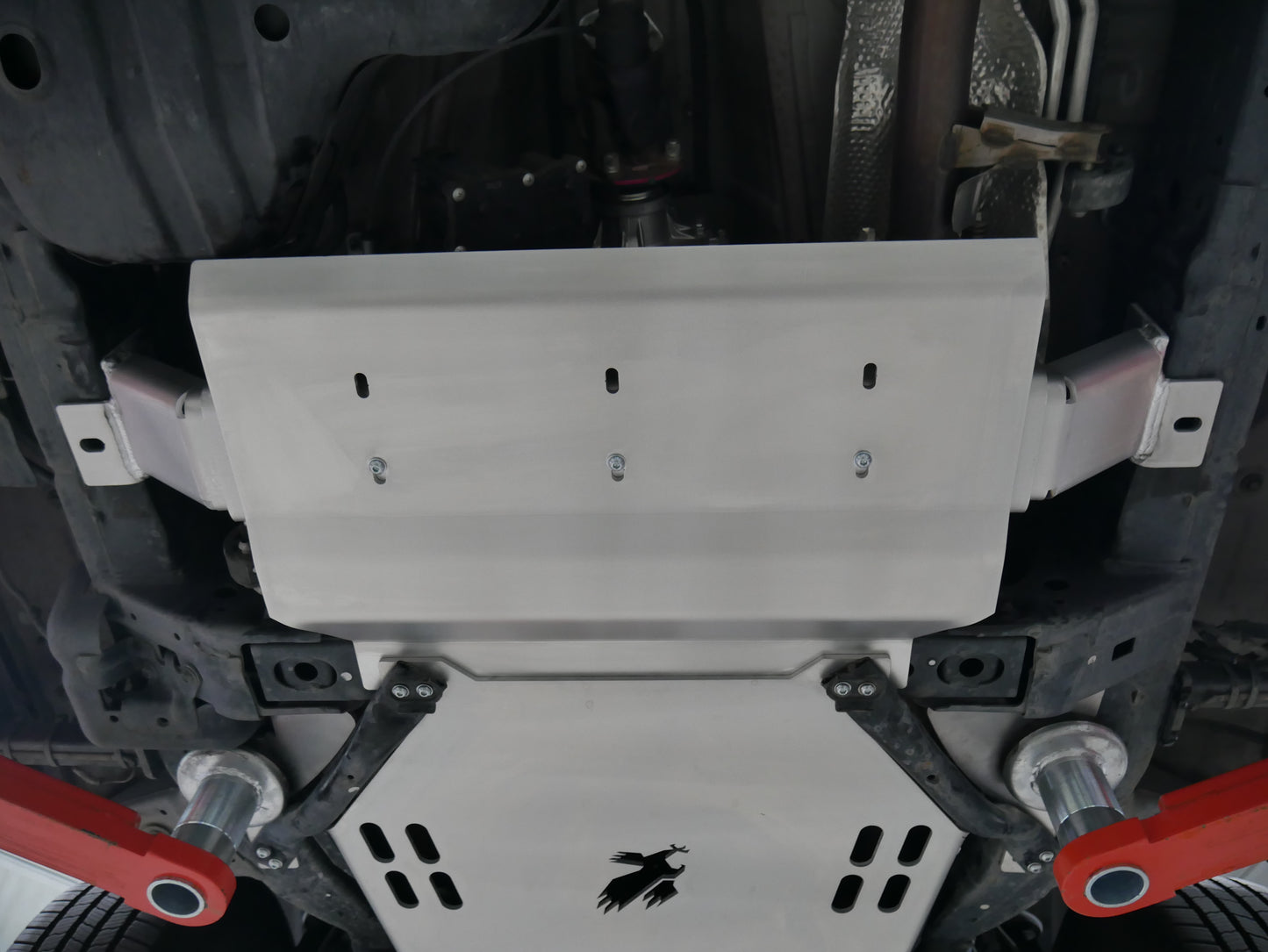

• Transfer Case Skid Plate
• Behind the transfer case shield you will find a steel crossmember brace that runs from one end to the other. This is designed out of 3/16" steel and is powder coated in black
• Not compatible with lift kits that require subframe modifications (usually lifts greater than 3 inches)
• Skid plates are designed for stock vehicles

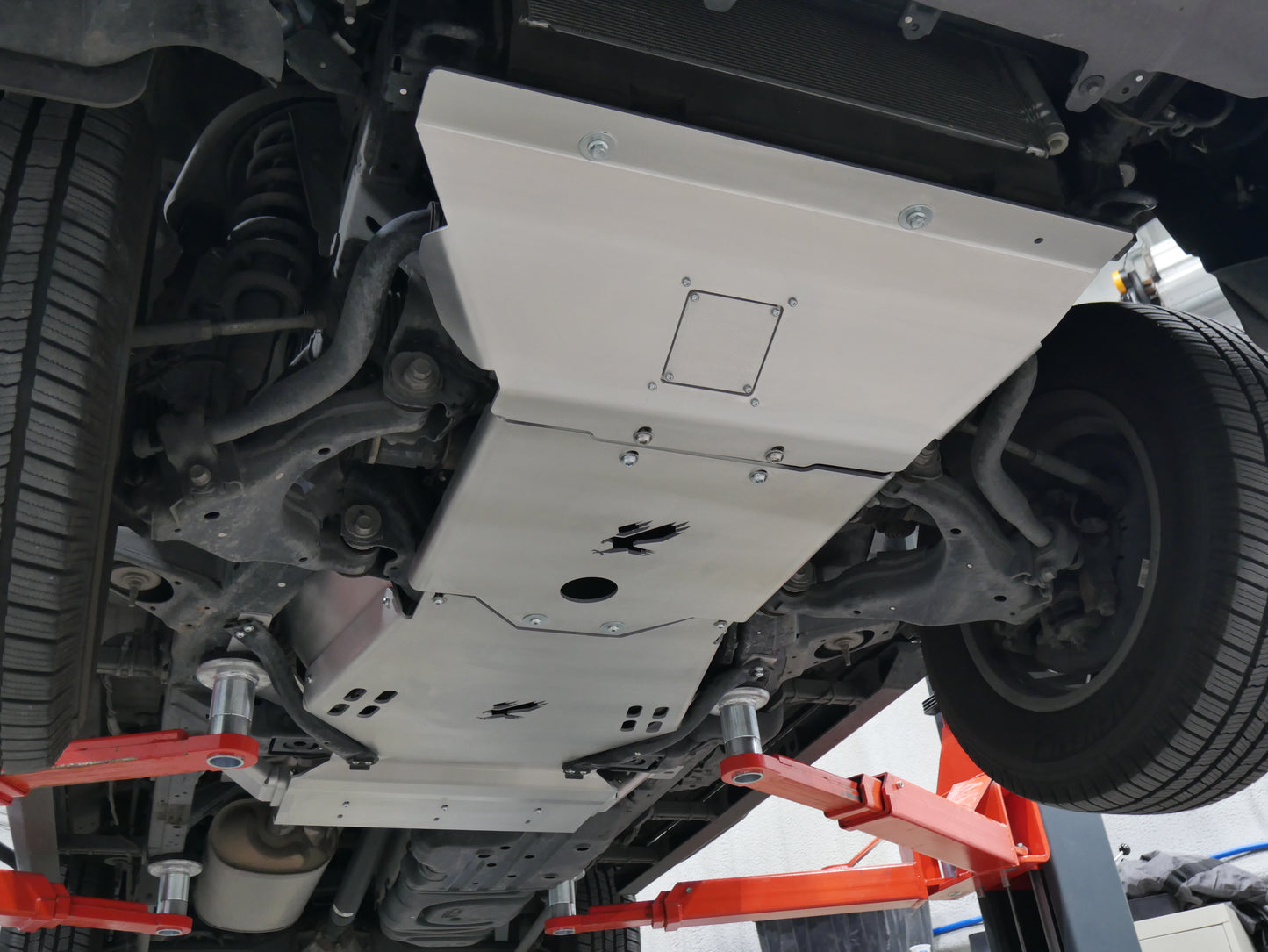

• Engine, transmission/cat shield, transfer case skids
• Zinc-coated button head Allen head hardware
• Add-on purchase: Security bolts are offered as an add-on purchase for transmission shield only. Link to product page here

• CNC Laser Cut out of 1/4" 5052 Aluminum or 3/16" steel
• Aluminum ships as bare metal
• Plates shipping uncoated as bare metal may have some cosmetic blemishes. Displays in pictures have been polished and finished

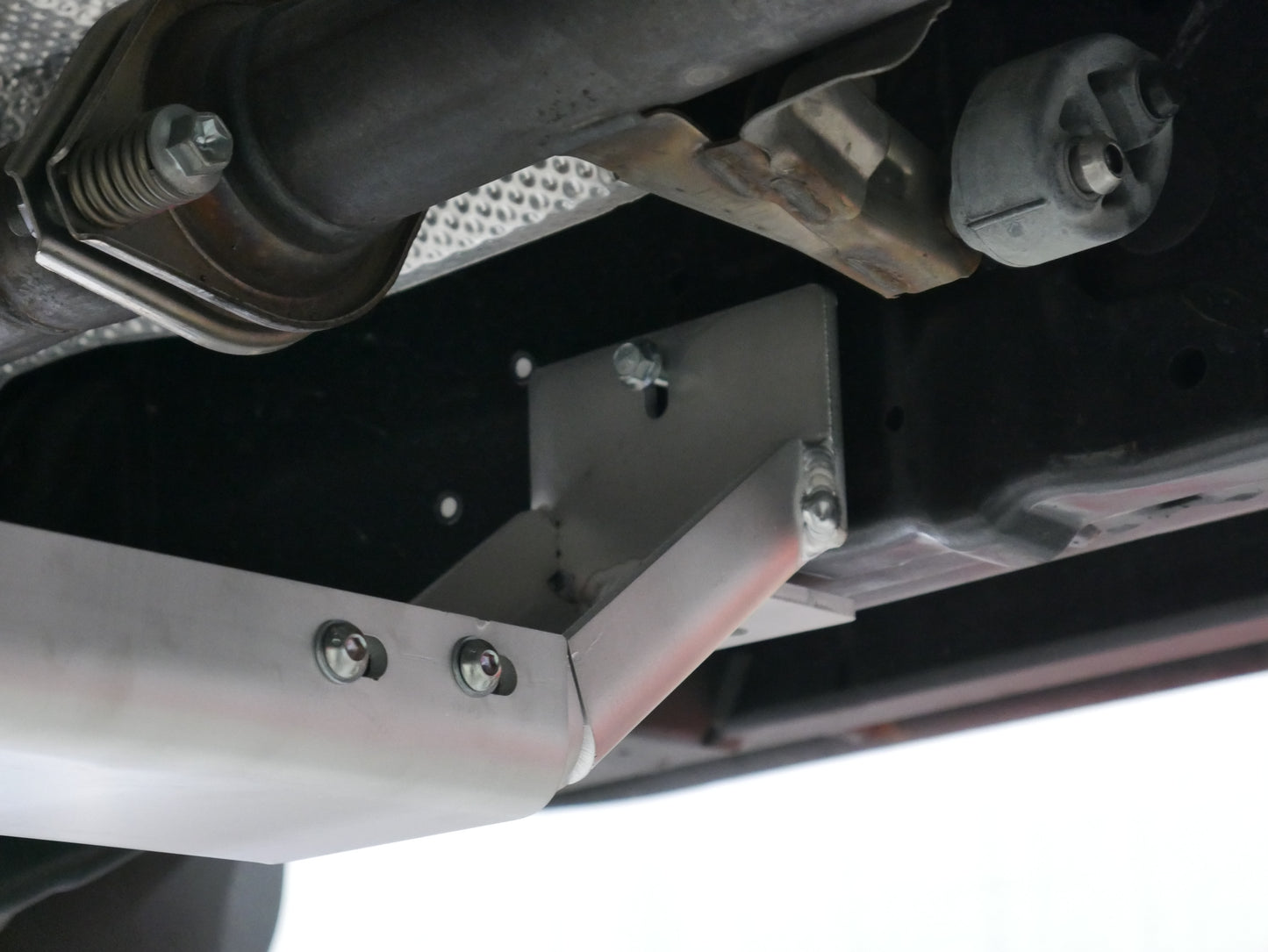

• The transfer case brace that runs from frame rail to frame rail will be made out of 3/16" steel and will be powder coated black
• Powder coat is a textured matte finish

• Bolt in installation, no drilling required
• Click here for installation instructions

Dimensions

• Front/engine skid in aluminum weighs 26lbs.
• Transmission skid in aluminum weighs 25lbs.
• Transfer case skid in aluminum weighs 30lbs.

• Click here for our policies page
• Ships in 1-2 weeks
