Ford F250 | Skid Plate | Catalytic Converter Shield | 2020-2024 | Gas Engine

Black Friday Savings!

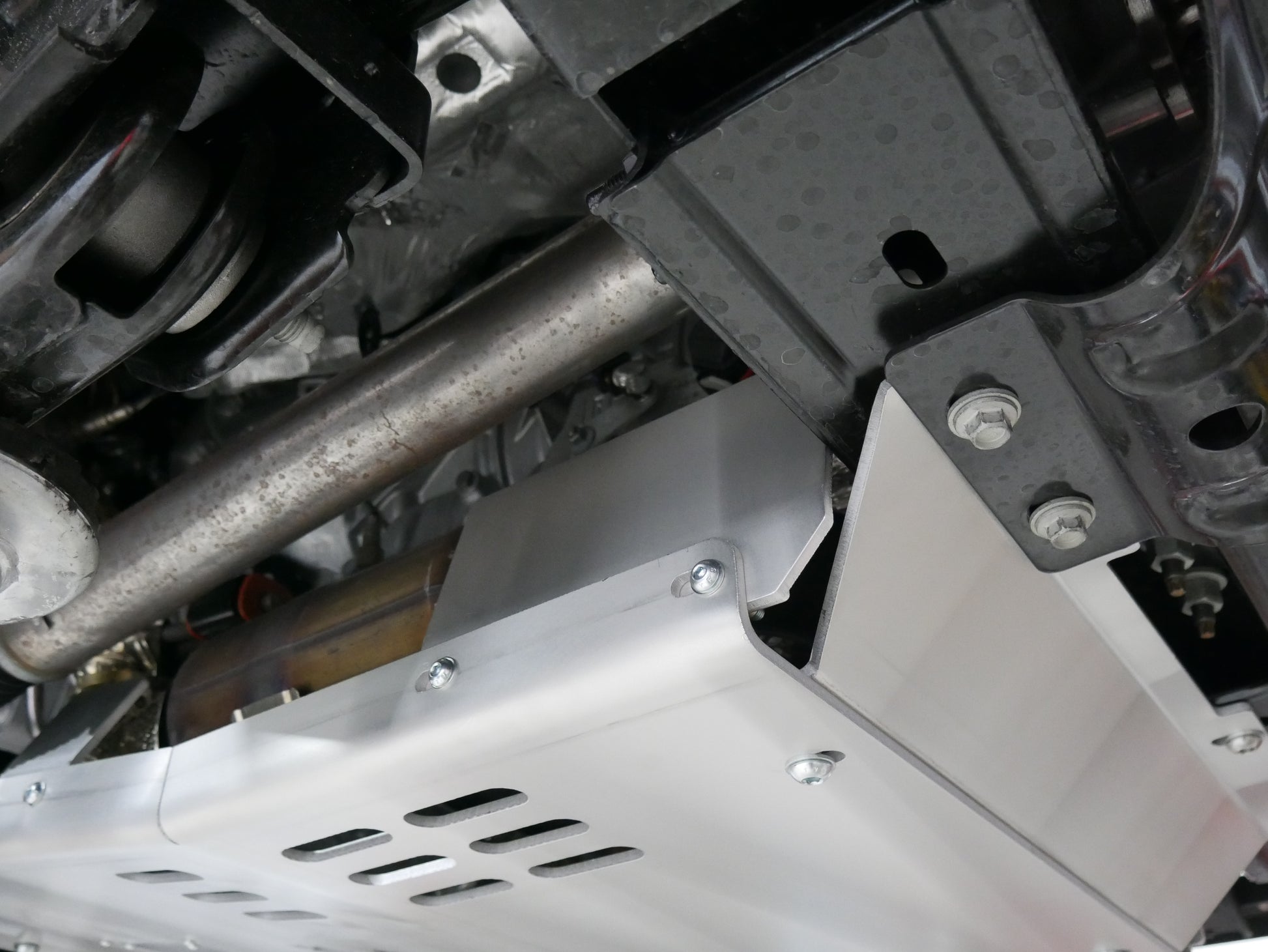

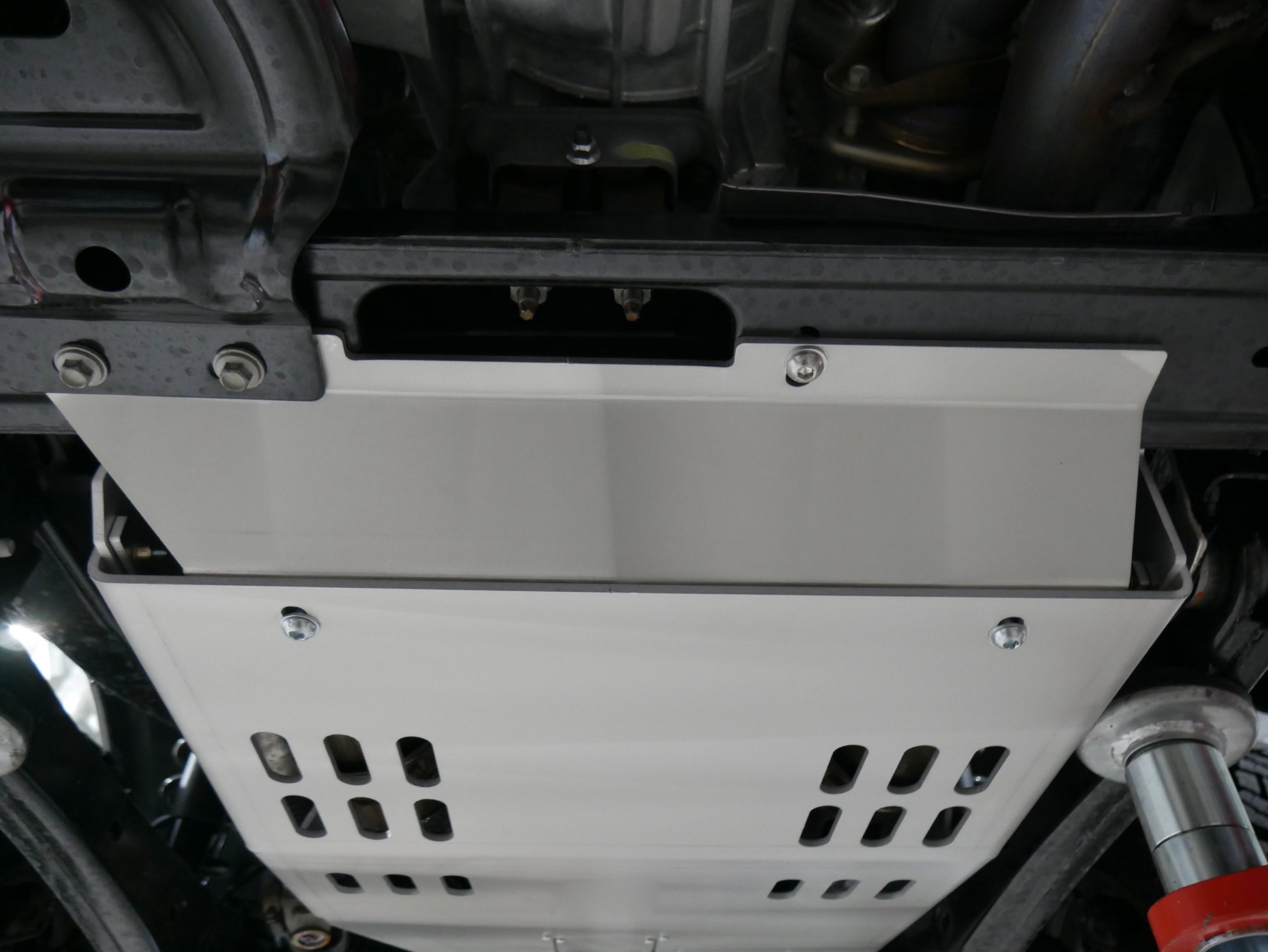

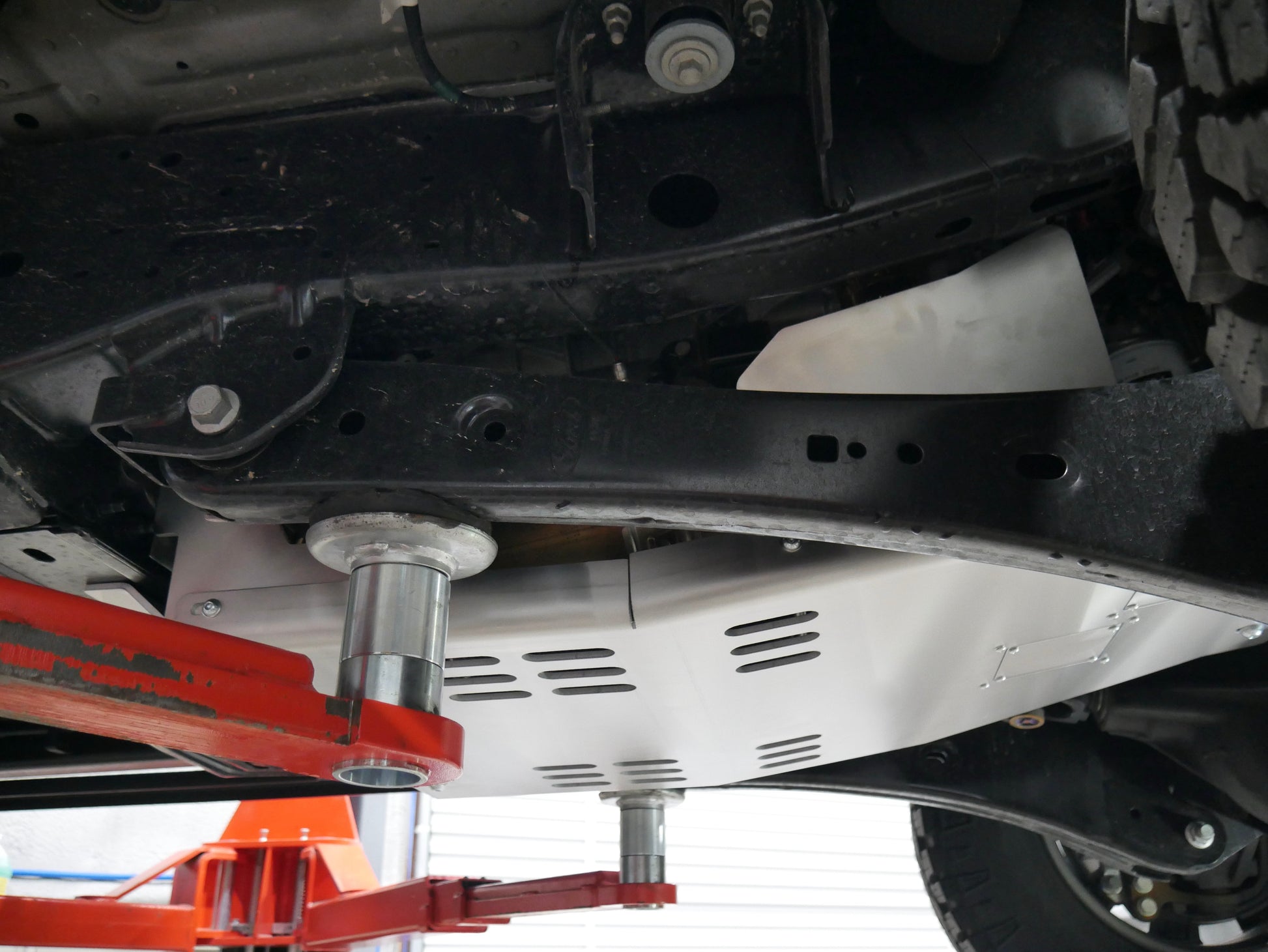

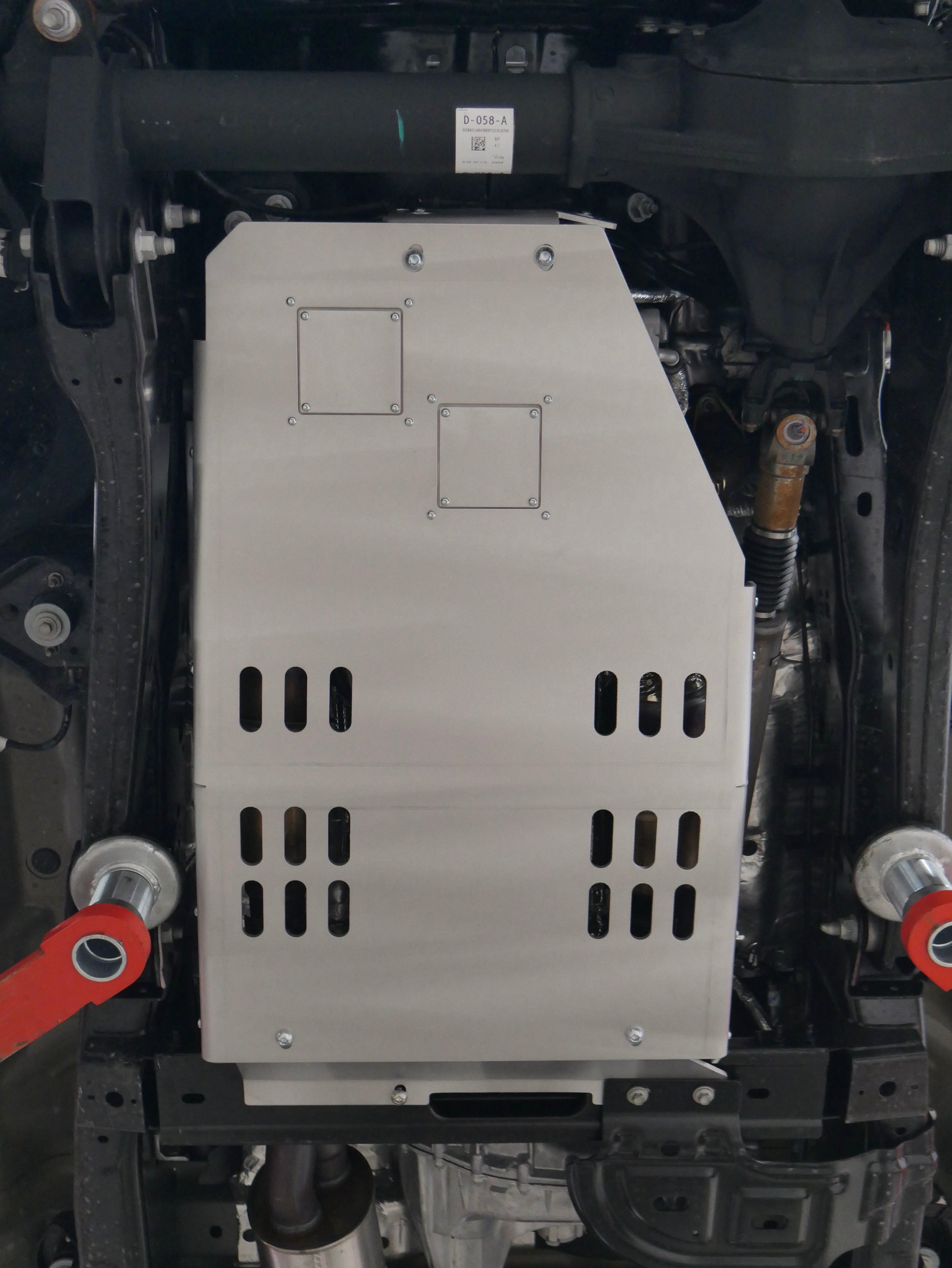

A catalytic converter shield for your 2020-2024 Ford F-250/F-350 with the 6.2L, 6.8L, and 7.3L gas engines. Crafted out of 1/4" 5052 aluminum making it an ideal cat theft deterrent and an off-road skid plate. It's an all-in-one design concept! This design boasts a full length shield that runs from crossmember to crossmember with added attachments for additional catalytic converter protection.

This plate is only designed to fit the 2020-2024 F-250/F-350 with the 7.3L, 6.2L, and 6.8L gas engines with a 4x4 drive train.

Fitment

• This plate is only designed to fit the 2020-2024 F-250/F-350 with the 7.3L, 6.2L, and 6.8L gas engines with a 4x4 drive train
• Due to some variations in the exhaust from the factory, the side shield plates may need to be installed on the outside of the plate instead of the inside as shown in photos

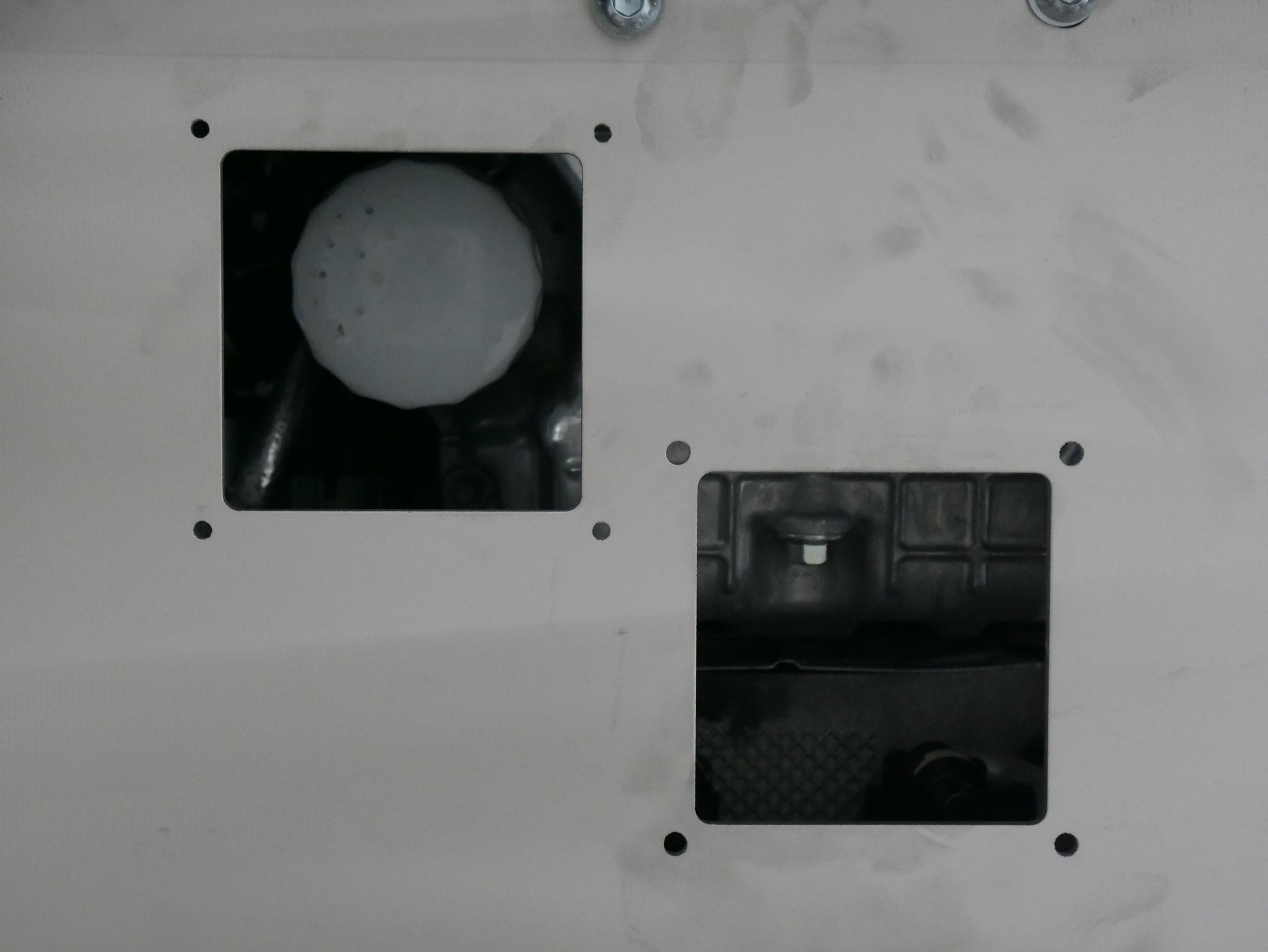

• Access to oil filter and drain plug!
• We do recommend a Fumoto valve, or similar, to ease oil changes with shield installed
• Mounts into pre-existing holes. No drilling required. Integrated with factory transfer case skid.*
• *If factory transfer case skid is not present, OEM transfer case mounting hardware will need to be purchased
• Not compatible with lift kits that require subframe modifications (usually lifts greater than 3 inches)
• Fitment confirmed on stock 4x4 vehicles

Included with purchase

• Transmission skid/catalytic converter shield
• Zinc coated button head Allen head hardware

Material

• CNC Laser Cut out of 1/4" 5052 Aluminum - Will not rust!
• Ships as bare metal
• All plates ship uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished.

Installation

• These plates do require some mechanical skill to install, as some of the bolts are in tight, and hard-to-reach areas
• Direct bolt-on, no drilling required
• Click here for installation instructions
• Link to installation video

Dimensions

• Approximately 43x3x33 inches and 40 lbs

Shipping, returns, warranty

• Click here for our policies page
• Now shipping in 1-2 business days
• If you are interested in local pick up please select "Local Pick Up" as your shipping preference at check out. We are located in Northwest Houston (Willowbrook, zip code 77066).
